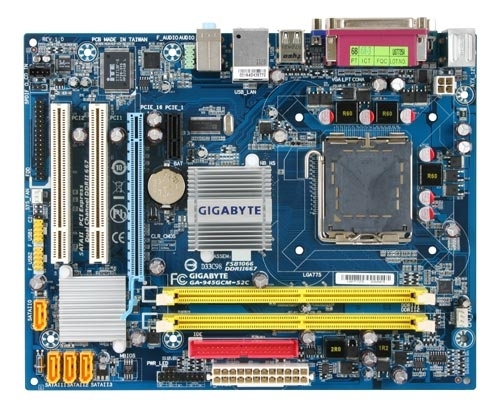

GIGABYTE GA-945GCM-S2C motherboard LGA 775 (Socket T) ATX
Model GA-945GCM-S2CEAN 818313004277
36 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Parallel processing technology supportNot supported
- Ethernet LAN (RJ-45) ports1
- LAN controllerRealtek RTL8111E
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Parallel processing technology support
- Not supported
- Ethernet LAN (RJ-45) ports
- 1
- LAN controller
- Realtek RTL8111E
- Motherboard form factor
- ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-945GCM-S2C
- Part number
- GA-945GCM-S2C
- EAN / UPC
- 818313004277, 4719331834135
- Also known as
- GIGABYTE GA-945GCM-S2C motherboard LGA 775 (Socket T) ATX
Specifications
36 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® 4, Intel® Pentium® D |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 2 GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| Graphics card | GMA 950 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111E |
| Networking features | 10/100 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows Vista/XP/2000 |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCIE x16 1 x PCIE 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 32 Mbit |
Other features
| Specification | Value |
|---|---|
| Controller interface type | iTE IT8718 |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-945GCM-S2C motherboard LGA 775 (Socket T) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-945GCM-S2C motherboard LGA 775 (Socket T) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-945GCM-S2C motherboard LGA 775 (Socket T) ATX
All motherboard comparisons- GIGABYTE GA-945GCM-S2C motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-780SLI-DS5 motherboard LGA 775 (Socket T) ATXCompare specs

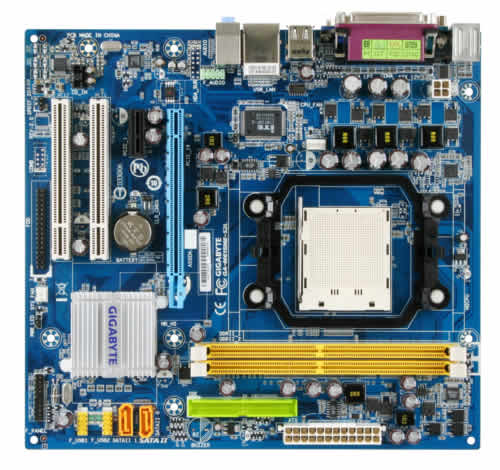

- GIGABYTE GA-945GCM-S2C motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-M61SME-S2L MotherboardCompare specs
- GIGABYTE GA-945GCM-S2C motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-X38-DS4 - ATX, LGA 775Compare specs

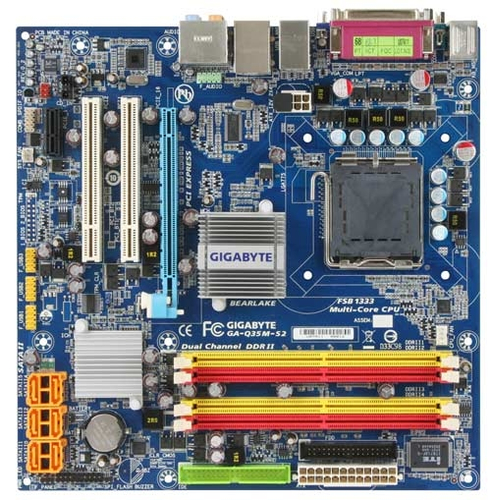

- GIGABYTE GA-945GCM-S2C motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-Q35M-S2 S775, Q35, MATXCompare specs
- GIGABYTE GA-945GCM-S2C motherboard LGA 775 (Socket T) ATX vsFujitsu Mainboard D1215Compare specs
- GIGABYTE GA-945GCM-S2C motherboard LGA 775 (Socket T) ATX vsMSI K9NGM4-F V2Compare specs

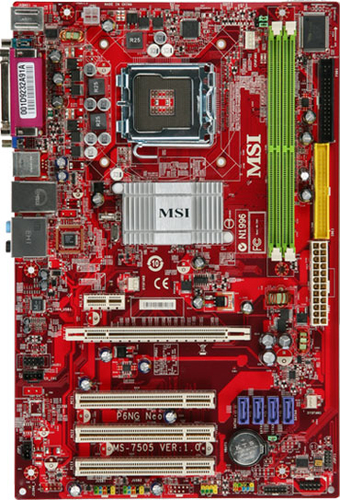

- GIGABYTE GA-945GCM-S2C motherboard LGA 775 (Socket T) ATX vsMSI P6NG NEO-LCompare specs

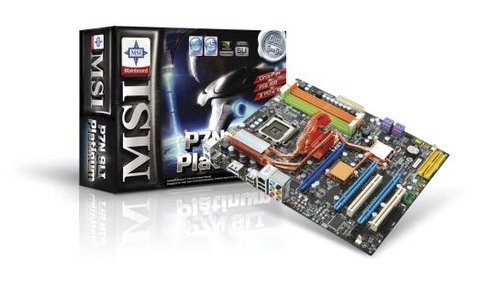

- GIGABYTE GA-945GCM-S2C motherboard LGA 775 (Socket T) ATX vsMSI P7N SLI PlatinumCompare specs
