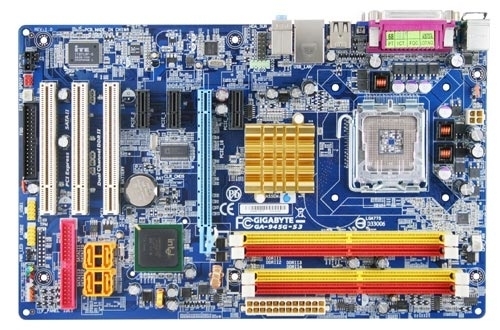

GIGABYTE GA-945G-S3 (rev. 1.0) Intel 945G+ ICH7 Chipset
Model GA-945G-S3 (rev. 1.0) Intel 945G+ ICH7 ChipsetPart no. GA-945G-S3
32 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors2
- LAN controllerRealtek RTL8111B
- Motherboard form factorATX
- Width305 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- LAN controller
- Realtek RTL8111B
- Motherboard form factor
- ATX
- Width
- 305 mm
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-945G-S3 (rev. 1.0) Intel 945G+ ICH7 Chipset
- Part number
- GA-945G-S3
- Also known as
- GIGABYTE GA-945G-S3 (rev. 1.0) Intel 945G+ ICH7 Chipset LGA 775 (Socket T) ATX
Specifications
32 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111B |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC883 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x 16 slot 3 x PCI Express x 1 slot 3 x PCI slots |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 194 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
