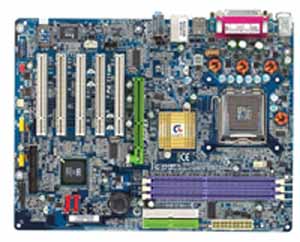

GA-8S648FX-775 motherboard LGA 775 (Socket T) ATX
Model GA-8S648FX-775
11 specifications
- Processor manufacturerIntel
- Maximum internal memory3 GB
- Networking featuresICS1883
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Maximum internal memory
- 3 GB
- Networking features
- ICS1883
- Motherboard form factor
- ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-8S648FX-775
- Part number
- GA-8S648FX-775
- Also known as
- GIGABYTE GA-8S648FX-775 motherboard LGA 775 (Socket T) ATX
Specifications
11 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 3 GB |
Network
| Specification | Value |
|---|---|
| Networking features | ICS1883 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP 8x/4x, 5 x PCI slots (PCI 2.2 compliant) |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security 1. Norton Anti-Virus 2. Norton Personal Firewall 3. Norton Privacy Control 4. Norton Parental Control 5. Norton Spam Alert GIGABYTE Windows Utility Manager Adobe Acrobat Reader |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 295 x 223 |
| Audio output | AC97(Realtek ALC655) |
| I/O ports | # 2 x Serial ATA ports # 2 x USB 2.0/1.1 connectors (4 ports by cable) # S/P DIF output connector (by optional cable) # 2 x UDMA ATA 133/100/66 Bus Master IDE ports # 1 x FDD port # CD/AUX in # 4 x USB 2.0/1.1 ports # 1 x LPT port # 1 x RJ45 LAN port # 2 x COM ports # 3 x Audio ports(Line-in /Line-o |
