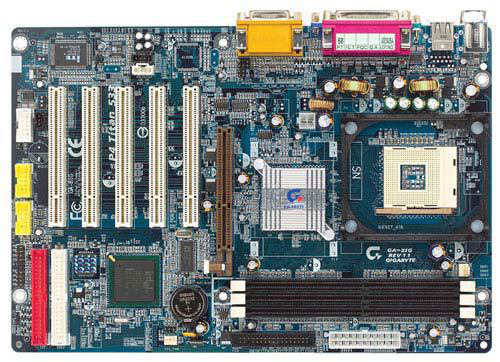

GIGABYTE GA-8IG motherboard Intel®
845G Socket 478 ATX
Model GA-8IG
42 specifications
- Processor manufacturerIntel
- Supported memory typesDDR-SDRAM
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
- Component forPC
- PCI slots5
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR-SDRAM
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- Component for
- PC
- PCI slots
- 5
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-8IG
- Part number
- GA-8IG
- Also known as
- GIGABYTE GA-8IG motherboard Intel® 845G Socket 478 ATX
Specifications
42 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 478 |
| Compatible processor series | Intel® Pentium® 4 |
| Processor system buses supported | 533 MHz |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR-SDRAM |
| Number of memory slots | 3 |
| Memory voltage | 2.5 V |
| Supported memory clock speeds | 266 MHz |
| Maximum internal memory | 2 GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 2 |
| CD/AUX audio in | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 0 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® 845G |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows XP, Vista, 7 |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 5 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 2 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 200 mm |
Other features
| Specification | Value |
|---|---|
| AGP x4 slots | 1 |
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | Yes |
