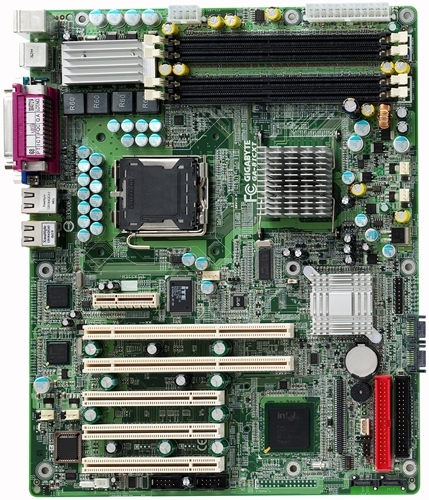

GIGABYTE GA-8ICXT (Server / Workstation Board)
Model GA-8ICXT (Server / Workstation Board)Part no. GA-8ICXT
22 specifications
- Processor manufacturerIntel
- Number of memory slots4
- Maximum graphics card memory8 MB
- USB 2.0 ports quantity2
- LAN controllerIntel® 82541PI
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- Maximum graphics card memory
- 8 MB
- USB 2.0 ports quantity
- 2
- LAN controller
- Intel® 82541PI
- Motherboard form factor
- ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-8ICXT (Server / Workstation Board)
- Part number
- GA-8ICXT
- Also known as
- GIGABYTE GA-8ICXT (Server / Workstation Board) Intel® E7221 LGA 775 (Socket T) ATX
Specifications
22 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 4 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82541PI |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® E7221 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI-Express X4 2 x PCI-X 64-bit/66~100MHz 3 x PCI 32bit/33MHz |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 308 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Graphics controller | ATI Rage XL |
