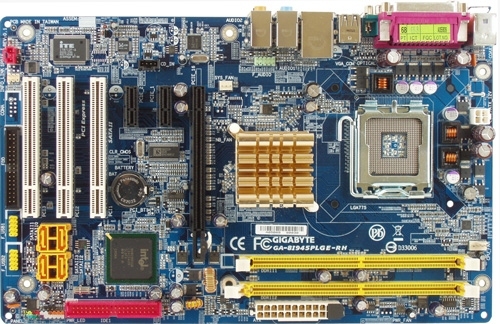

GIGABYTE GA-8I945PLGE-RH motherboard LGA 775 (Socket T) ATX
Model GA-8I945PLGE-RHEAN 4719331801052
25 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8111B
- Motherboard form factorATX
- Width305 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8111B
- Motherboard form factor
- ATX
- Width
- 305 mm
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-8I945PLGE-RH
- Part number
- GA-8I945PLGE-RH
- EAN / UPC
- 4719331801052
- Also known as
- GIGABYTE GA-8I945PLGE-RH motherboard LGA 775 (Socket T) ATX
Specifications
25 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| Number of chassis fan connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111B |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 PCI Express x 16 2 PCI Express x 1 3 PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 190 mm |
Other features
| Specification | Value |
|---|---|
| Audio output | Realtek ALC880 |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-8I945PLGE-RH motherboard LGA 775 (Socket T) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-8I945PLGE-RH motherboard LGA 775 (Socket T) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-8I945PLGE-RH motherboard LGA 775 (Socket T) ATX
All motherboard comparisons- GIGABYTE GA-8I945PLGE-RH motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-8I865GMK-775 motherboard LGA 775 (Socket T) micro ATXCompare specs

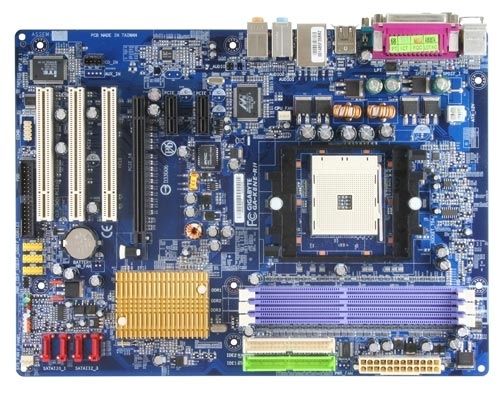

- GIGABYTE GA-8I945PLGE-RH motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-K8NE-RH motherboard Socket 754 ATXCompare specs
