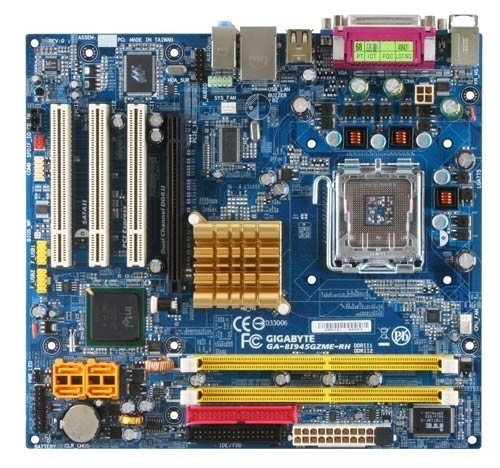

GIGABYTE GA-8I945GZME-RH motherboard LGA 775 (Socket T) micro ATX
Model GA-8I945GZME-RH
27 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Ethernet LAN (RJ-45) ports1
- Networking featuresGigabit Ethernet
- Motherboard form factormicro ATX
- Expansion slots1 x PCI Express x 16 3 x PCI
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Ethernet LAN (RJ-45) ports
- 1
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- micro ATX
- Expansion slots
- 1 x PCI Express x 16 3 x PCI
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-8I945GZME-RH
- Part number
- GA-8I945GZME-RH
- Also known as
- GIGABYTE GA-8I945GZME-RH motherboard LGA 775 (Socket T) micro ATX
Specifications
27 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x 16 3 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 220 mm |
Other features
| Specification | Value |
|---|---|
| Audio output | Realtek ALC883 HD Audio |
| Floppy disk drive connector | Yes |
