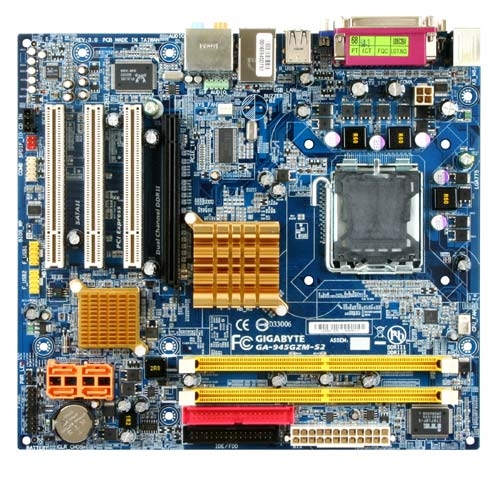

GIGABYTE GA-8I945GZM-S2 motherboard Socket 945 micro ATX
Model GA-8I945GZM-S2
31 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity4
- Networking featuresGigabit Ethernet
- Motherboard form factormicro ATX
- Expansion slots1xPCI Express x 16, 3xPCI
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- micro ATX
- Expansion slots
- 1xPCI Express x 16, 3xPCI
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-8I945GZM-S2
- Part number
- GA-8I945GZM-S2
- Also known as
- GIGABYTE GA-8I945GZM-S2 motherboard Socket 945 micro ATX
Specifications
31 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 945 |
| Compatible processor series | Intel® Celeron® D, Intel® Pentium® 4, Intel® Pentium® D |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC883 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1xPCI Express x 16, 3xPCI |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
