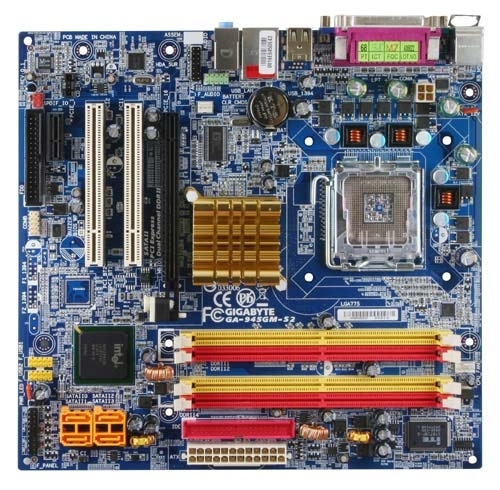

GIGABYTE GA-8I945GM-S2 motherboard LGA 775 (Socket T) micro ATX
Model GA-8I945GM-S2
29 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors2
- LAN controllerRealtek RTL8111B
- Motherboard form factormicro ATX
- Width233 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- LAN controller
- Realtek RTL8111B
- Motherboard form factor
- micro ATX
- Width
- 233 mm
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-8I945GM-S2
- Part number
- GA-8I945GM-S2
- Also known as
- GIGABYTE GA-8I945GM-S2 motherboard LGA 775 (Socket T) micro ATX
Specifications
29 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111B |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x 16 1 x PCI Express x 1 2 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 233 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Audio output | Realtek ALC883 |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-8I945GM-S2 motherboard LGA 775 (Socket T) micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-8I945GM-S2 motherboard LGA 775 (Socket T) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-8I945GM-S2 motherboard LGA 775 (Socket T) micro ATX

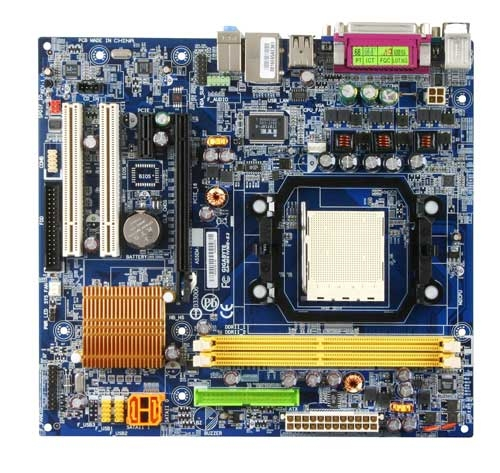

All motherboard comparisons- GIGABYTE GA-8I945GM-S2 motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE GA-M61VME-S2 motherboard Socket AM2 micro ATXCompare specs

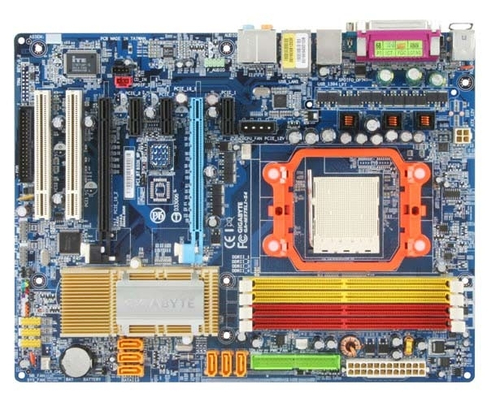

- GIGABYTE GA-8I945GM-S2 motherboard LGA 775 (Socket T) micro ATX vsGIGABYTE GA-M57SLI-S4 motherboard Socket AM2 ATXCompare specs
