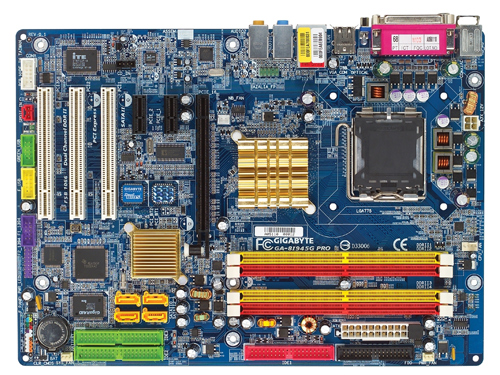

GIGABYTE GA-8I945G Pro
Model GA-8I945G ProPart no. GA-8I945G PROEAN 4719331817077
23 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors2
- Motherboard form factorATX
- Width305 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- Motherboard form factor
- ATX
- Width
- 305 mm
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-8I945G Pro
- Part number
- GA-8I945G PRO
- EAN / UPC
- 4719331817077
- Also known as
- GIGABYTE GA-8I945G Pro LGA 775 (Socket T) ATX
Specifications
23 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of chassis fan connectors | 3 |
| Number of IEEE1394 connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC882 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 PCI Express x 16 2 PCI Express x 1 3 PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 220 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| I/O ports | 4 x Line-out/ 1 x Line-in/ 1 x MIC |
| RAID controller type | GigaRAID ITE8212 IDE |
