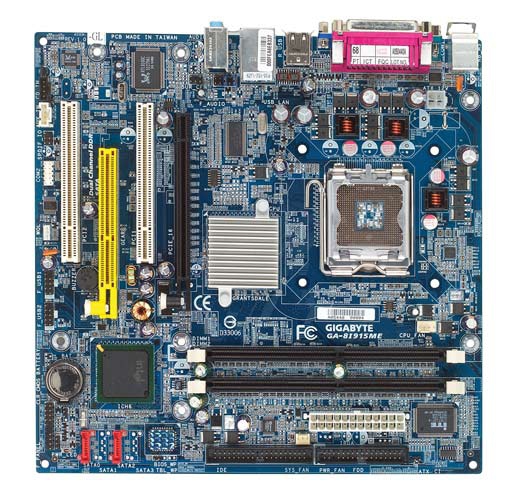

GIGABYTE GA-8I915ME-GL (rev. 1.x)
Model GA-8I915ME-GL (rev. 1.x)Part no. GA-8I915ME-GL
41 specifications
- Processor socketLGA 775 (Socket T)
- Number of memory slots2
- Parallel processing technology supportNot supported
- USB 2.0 ports quantity4
- Networking featuresFast Ethernet
- Motherboard form factormicro ATX
Overview
- Processor socket
- LGA 775 (Socket T)
- Number of memory slots
- 2
- Parallel processing technology support
- Not supported
- USB 2.0 ports quantity
- 4
- Networking features
- Fast Ethernet
- Motherboard form factor
- micro ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-8I915ME-GL (rev. 1.x)
- Part number
- GA-8I915ME-GL
- Also known as
- GIGABYTE GA-8I915ME-GL (rev. 1.x) LGA 775 (Socket T) micro ATX
Specifications
41 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Pentium® 4 |
| Maximum number of SMP processors | 1 |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Supported memory clock speeds | 333,400 MHz |
| Maximum internal memory | 2 GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 1 |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC655 |
| Audio output channels | 6.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 236 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security 2005 - Norton Anti Virus - Norton Personal Firewall - Norton Privacy Control - Norton Parental Control - Norton Spam Alert GIGABYTE Windows Utility Manager Adobe Acrobat Reader |
Other features
| Specification | Value |
|---|---|
| AGP x8 slots | 1 |
| Floppy disk drive connector | Yes |
| Quick installation guide | Yes |
