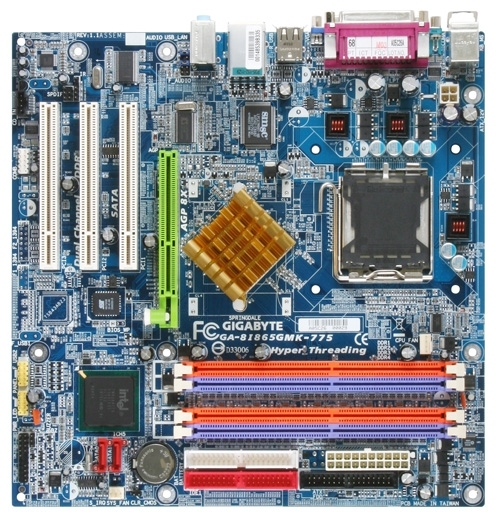

GIGABYTE GA-8I865GMK-775 motherboard LGA 775 (Socket T) micro ATX
Model GA-8I865GMK-775
28 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors2
- LAN controllerIntel® 82562G
- Motherboard form factormicro ATX
- Expansion slots1 x AGP 8x 3 x PCI
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- LAN controller
- Intel® 82562G
- Motherboard form factor
- micro ATX
- Expansion slots
- 1 x AGP 8x 3 x PCI
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-8I865GMK-775
- Part number
- GA-8I865GMK-775
- Also known as
- GIGABYTE GA-8I865GMK-775 motherboard LGA 775 (Socket T) micro ATX
Specifications
28 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82562G |
| Networking features | 10/100Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP 8x 3 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Audio output | ADI AD1888 CODEC |
| Floppy disk drive connector | Yes |
