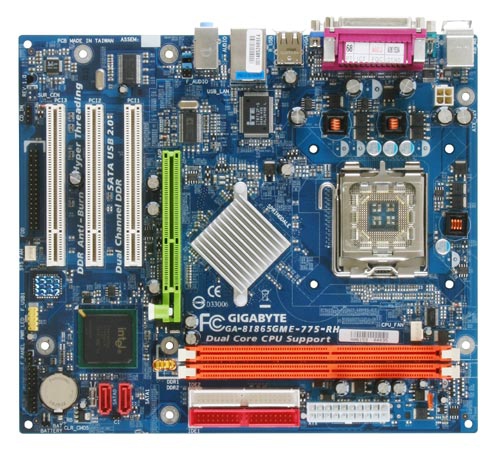

GIGABYTE GA-8I865GME-775-RH-AS (rev. 1.0)
Model GA-8I865GME-775-RH-AS (rev. 1.0)Part no. GA-8I865GME-775-RH-AS
40 specifications
- Processor socketLGA 775 (Socket T)
- Number of memory slots2
- Parallel processing technology supportNot supported
- USB 2.0 connectors1
- USB 2.0 ports quantity4
- LAN controllerIntel® 82562G
Overview
- Processor socket
- LGA 775 (Socket T)
- Number of memory slots
- 2
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 4
- LAN controller
- Intel® 82562G
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-8I865GME-775-RH-AS (rev. 1.0)
- Part number
- GA-8I865GME-775-RH-AS
- Also known as
- GIGABYTE GA-8I865GME-775-RH-AS (rev. 1.0) LGA 775 (Socket T) micro ATX
Specifications
40 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | LGA 775 (Socket T) |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Supported memory clock speeds | 266,333,400 MHz |
| Maximum internal memory | 2 GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 2 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82562G |
| Networking features | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 3 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 212 mm |
Other features
| Specification | Value |
|---|---|
| AGP x8 slots | 1 |
| Floppy disk drive connector | Yes |
| Quick installation guide | Yes |
