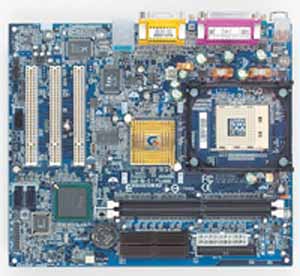

GA-8I845GVM-RZ Socket 478 micro ATX
Model GA-8I845GVM-RZPart no. GAI845GVMRZ-00-GX
10 specifications
- Processor manufacturerIntel
- Networking featuresRealtek 8100C LAN chip
- Motherboard form factormicro ATX
- Expansion slots3 x PCI (PCI 2.2 compliant)
Overview
- Processor manufacturer
- Intel
- Networking features
- Realtek 8100C LAN chip
- Motherboard form factor
- micro ATX
- Expansion slots
- 3 x PCI (PCI 2.2 compliant)
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-8I845GVM-RZ
- Part number
- GAI845GVMRZ-00-GX
- Also known as
- GIGABYTE GA-8I845GVM-RZ Socket 478 micro ATX
Specifications
10 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 478 |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek 8100C LAN chip |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 3 x PCI (PCI 2.2 compliant) |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security Norton Anti Virus Norton Personal Firewall Norton Privacy Control Norton Spam Alert Norton Parental Control GIGABYTE Windows Utility Manager Adobe Acrobat Reader Adobe Acrobat e-Book Reader IAA (Intel Application Accelerator) Direct X 8.1 |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 243 x 209 |
| Audio output | Realtek ALC655 Audio AC'97 CODEC |
| I/O ports | 1 x FDD 2 x UDMA ATA 100/66 Bus Master IDE 2 x USB 2.0 S/P DIF output 2 x cooling fan pin headers CD/AUX in headers 1 x WOL header 1 x COM port 2 x USB 2.0 ports 1 x LPT 1 x COM port 1 x VGA port 1 x RJ45 port Audio (1 x Line-in / 1 x Line-out / 1 x MIC) connector PS/2 Keyboard/Mouse connector 1 x G |
