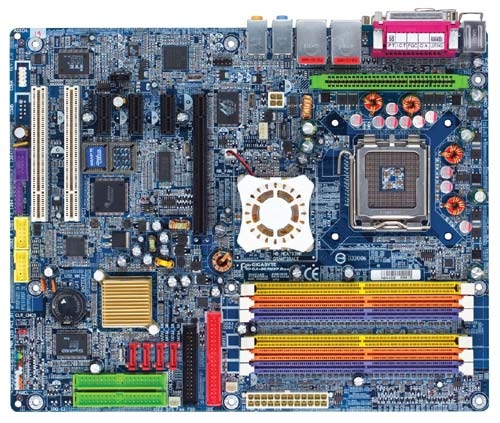

GIGABYTE GA-8GPNXP Duo
Model GA-8GPNXP DuoPart no. GA-8GPNXP DUOEAN 4719331823078
38 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity4
- Networking featuresGigabit
- Motherboard form factorATX
- PCI Express x1 slots3
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- Networking features
- Gigabit
- Motherboard form factor
- ATX
- PCI Express x1 slots
- 3
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-8GPNXP Duo
- Part number
- GA-8GPNXP DUO
- EAN / UPC
- 4719331823078
- Also known as
- GIGABYTE GA-8GPNXP Duo Intel® 915P Express LGA 775 (Socket T) ATX
Specifications
38 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 3 |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® 915P Express |
| Audio chip | C-Media CMI9880 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| S/PDIF in port | Yes |
| Controller interface type | ITE 8212 |
| Dual Power System (DPS) slot | Yes |
What people say
Reviews & ratings
GIGABYTE GA-8GPNXP Duo
No reviews yet
Be the first to tell others how GIGABYTE GA-8GPNXP Duo works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-8GPNXP Duo
All motherboard comparisons- GIGABYTE GA-8GPNXP Duo vsGIGABYTE GA-P55-US3L Intel® P55 LGA 1156 (Socket H) ATXCompare specs
- GIGABYTE GA-8GPNXP Duo vsGIGABYTE GA-7VKML motherboard Socket A (462) micro ATXCompare specs
- GIGABYTE GA-8GPNXP Duo vsGIGABYTE GA-8I915PC DuoCompare specs

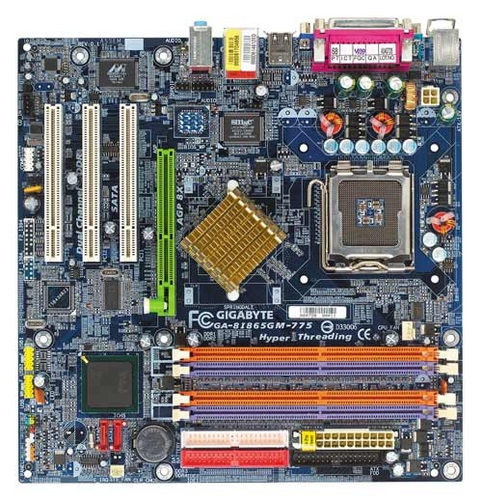

- GIGABYTE GA-8GPNXP Duo vsGIGABYTE GA-8I865GM-775 motherboard LGA 775 (Socket T) micro ATXCompare specs

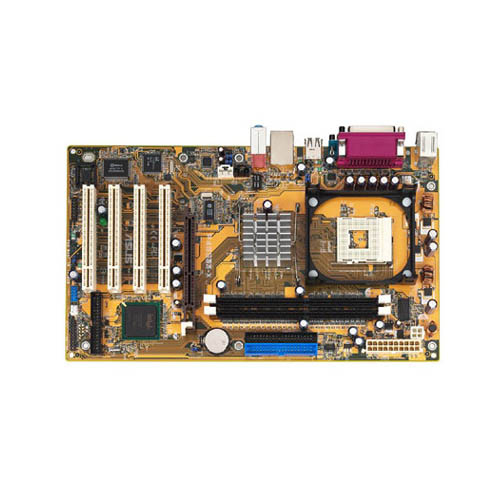

- GIGABYTE GA-8GPNXP Duo vsASUS P4B533-X motherboard Socket 478 ATXCompare specs
- GIGABYTE GA-8GPNXP Duo vsASUS P5G43T-M PROCompare specs

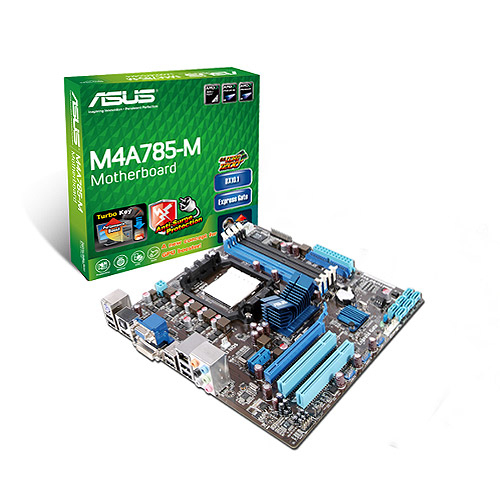

- GIGABYTE GA-8GPNXP Duo vsASUS MB M4A785-M mATX AM2 Plus 785GCompare specs
