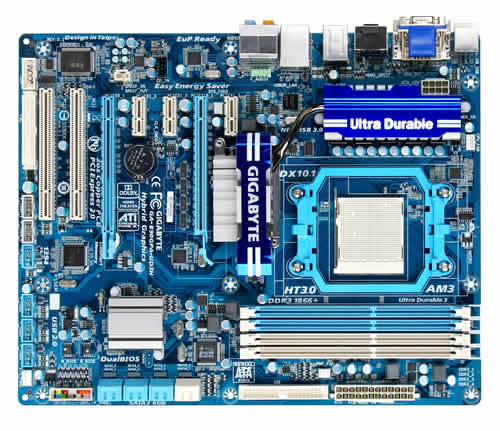

GIGABYTE GA-890GPA-UD3H motherboard AMD 890GX Socket AM3 ATX
Model GA-890GPA-UD3HEAN 4719331805128
51 specifications
- Memory0.125 GB
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, JBOD
- On-board graphics cardYes
- Networking featuresGigabit Ethernet
Overview
- Memory
- 0.125 GB
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, JBOD
- On-board graphics card
- Yes
- Networking features
- Gigabit Ethernet
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-890GPA-UD3H
- Part numbers
- GA-890GPA-UD3H, DSG - 890GPA-UD3H, GA-890GPA-UD3H-R3.1, GA-890GPA-UD3H-R3, GA-890GPA-UD3H-R2.1, GA-890GPA-UD3H-R2 +1 more
- EAN / UPC
- 4719331805128
- Also known as
- GIGABYTE GA-890GPA-UD3H motherboard AMD 890GX Socket AM3 ATX
Specifications
51 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.5 V |
| Internal memory | 0.125 GB |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, JBOD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card | Radeon HD 4290 |
| HDCP | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of IEEE1394 connectors | 2 |

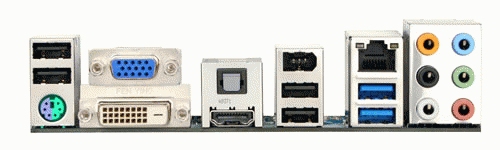

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 890GX |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 7/Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| Controller interface type | ITE IT8720 |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-890GPA-UD3H motherboard AMD 890GX Socket AM3 ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-890GPA-UD3H motherboard AMD 890GX Socket AM3 ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-890GPA-UD3H motherboard AMD 890GX Socket AM3 ATX
All motherboard comparisons- GIGABYTE GA-890GPA-UD3H motherboard AMD 890GX Socket AM3 ATX vsGIGABYTE GA-880GM-UD2H motherboard AMDCompare specs

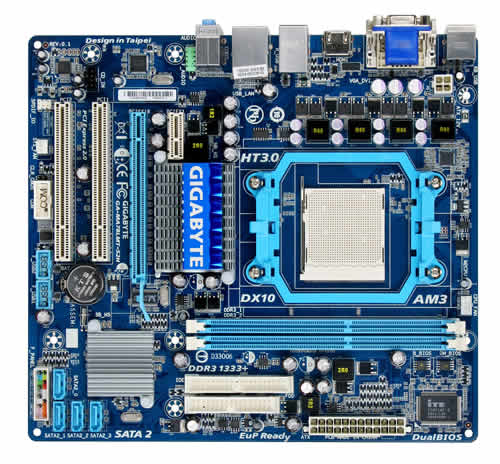

- GIGABYTE GA-890GPA-UD3H motherboard AMD 890GX Socket AM3 ATX vsGIGABYTE GA-MA78LMT-S2H (rev. 1.0)Compare specs

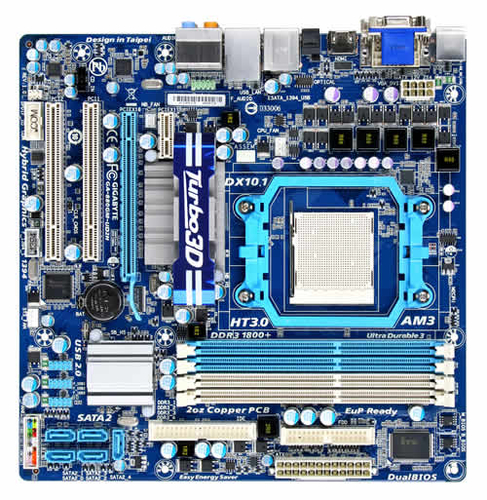

- GIGABYTE GA-890GPA-UD3H motherboard AMD 890GX Socket AM3 ATX vsGIGABYTE GA-MA785GMT-USB3, AM3, 785G, Radeon HD 4200Compare specs
- GIGABYTE GA-890GPA-UD3H motherboard AMD 890GX Socket AM3 ATX vsGIGABYTE GA-770T-USB AMD 770 Socket AM3 ATXCompare specs

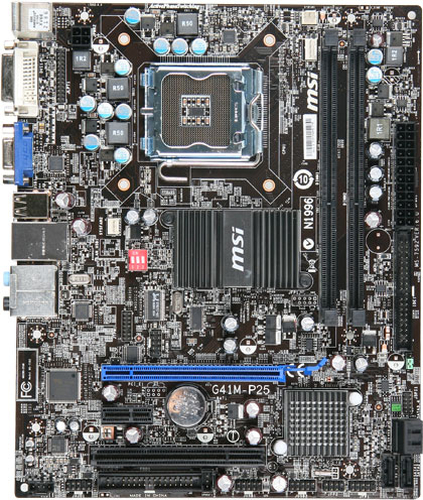

- GIGABYTE GA-890GPA-UD3H motherboard AMD 890GX Socket AM3 ATX vsMSI G41M-P25 motherboard LGA 775 (Socket T) micro ATXCompare specs

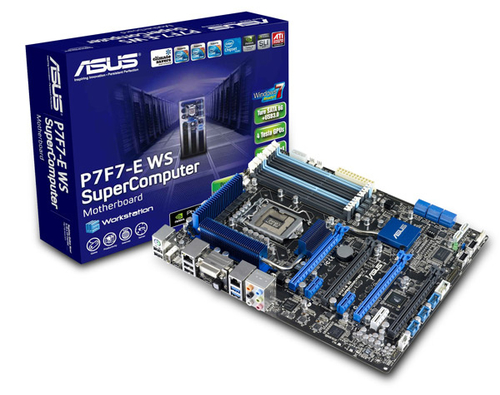

- GIGABYTE GA-890GPA-UD3H motherboard AMD 890GX Socket AM3 ATX vsASUS P7F7-E WS SuperComputerCompare specs
