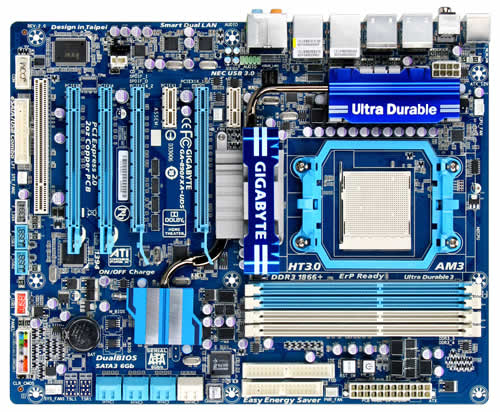

GIGABYTE GA-890FXA-UD5 motherboard AMD 890FX Socket AM3 ATX
Model GA-890FXA-UD5EAN 818313010339
43 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors6
- Networking features10/100/1000
- Motherboard form factorATX
- PCI Express x1 slots2
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 6
- Networking features
- 10/100/1000
- Motherboard form factor
- ATX
- PCI Express x1 slots
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-890FXA-UD5
- Part number
- GA-890FXA-UD5
- EAN / UPC
- 818313010339
- Also known as
- GIGABYTE GA-890FXA-UD5 motherboard AMD 890FX Socket AM3 ATX
Specifications
43 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.5 V |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |

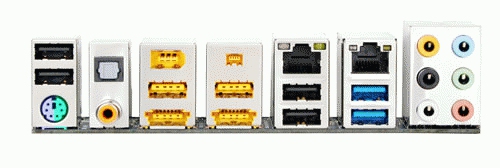

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 890FX |
| Audio chip | Realtek ALC889 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 7/Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-890FXA-UD5 motherboard AMD 890FX Socket AM3 ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-890FXA-UD5 motherboard AMD 890FX Socket AM3 ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-890FXA-UD5 motherboard AMD 890FX Socket AM3 ATX
All motherboard comparisons- GIGABYTE GA-890FXA-UD5 motherboard AMD 890FX Socket AM3 ATX vsGIGABYTE GA-890FXA-UD7 motherboard AMD 890FX Socket AM3 XL-ATXCompare specs

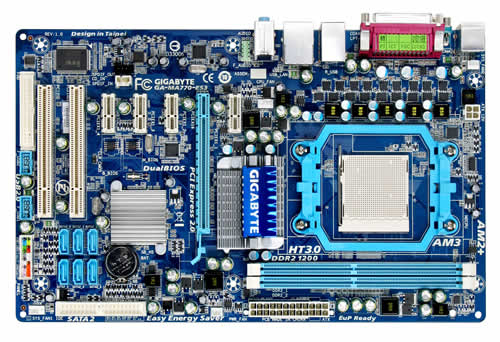

- GIGABYTE GA-890FXA-UD5 motherboard AMD 890FX Socket AM3 ATX vsGIGABYTE GA-MA770-ES3 motherboard AMD 770 ATXCompare specs
