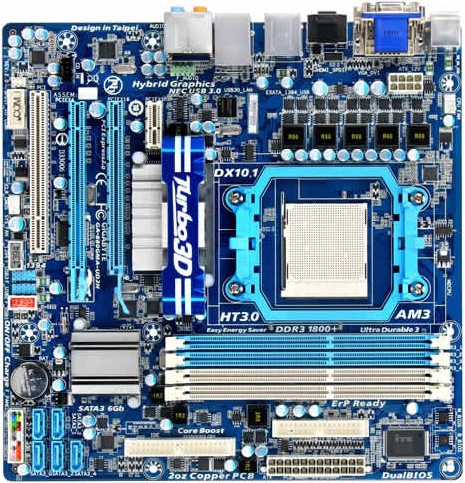

GIGABYTE GA-880GMA-UD2H motherboard AMD

GIGABYTE GA-880GMA-UD2H motherboard AMD

880G Socket AM3 ATX

Model GA-880GMA-UD2HEAN 4719331815233

50 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0, 1, 5, 10, JBOD
  • Graphics cardRadeon HD 4250
  • USB 2.0 connectors3
  • Networking featuresGigabit Ethernet
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0, 1, 5, 10, JBOD
Graphics card
Radeon HD 4250
USB 2.0 connectors
3
Networking features
Gigabit Ethernet
Brand
GIGABYTE
Category
Motherboard
Model
GA-880GMA-UD2H
Part numbers
GA-880GMA-UD2H, GA-880GMA-UD2H-R2, GA-880GMA-UD2H-R2.2, GA-880GMA-UD2H-R2.1
EAN / UPC
4719331815233, 818313010360
Also known as
GIGABYTE GA-880GMA-UD2H motherboard AMD 880G Socket AM3 ATX

Specifications

50 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3

Memory

Number of memory slots4
Memory voltage1.5 V
Maximum internal memory16 GB

Storage controllers

RAID levels0, 1, 5, 10, JBOD

Graphics

Graphics cardRadeon HD 4250

Internal I/O

USB 2.0 connectors3
Number of SATA connectors5
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of IEEE1394 connectors1

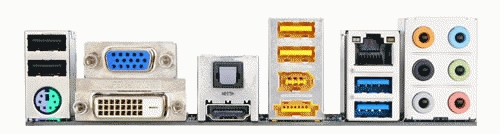

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs6
Microphone inYes
Digital audio optical out1

Network

Networking featuresGigabit Ethernet

Features

Motherboard form factorATX
Motherboard chipsetAMD 880G
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows 7/Vista/XP

Expansion slots

PCI Express x1 slots1
PCI Express x4 slots1
PCI Express x16 slots1
PCI slots1

BIOS

BIOS typeAWARD
BIOS memory size16 Mbit
ACPI version1.0

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Drivers includedYes

Other features

S/PDIF in connectorYes
Controller 2nd interface typeJMB368
Controller interface typeiTE IT8720
Floppy disk drive connectorYes
