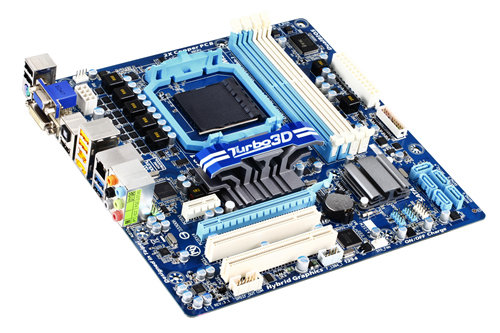

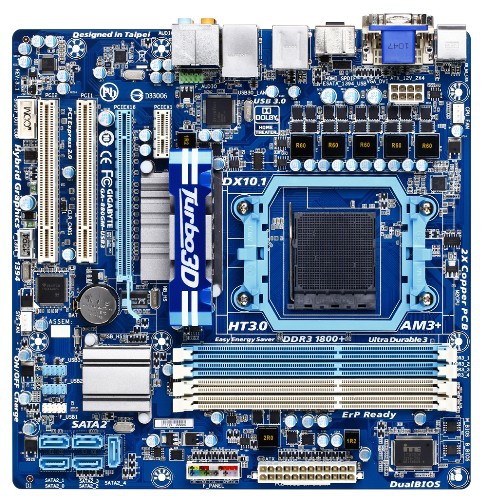

GIGABYTE GA-880GM-USB3 AMD

GIGABYTE GA-880GM-USB3 AMD

880G Socket AM3+ micro ATX

Model GA-880GM-USB3Part no. GA-880GM-USB3-R3.1

67 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Parallel processing technology supportHybrid CrossFireX
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Parallel processing technology support
Hybrid CrossFireX
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Brand
GIGABYTE
Category
Motherboard
Model
GA-880GM-USB3
Part numbers
GA-880GM-USB3-R3.1, GA-880GM-USB3-R1.x
Also known as
GIGABYTE GA-880GM-USB3 AMD 880G Socket AM3+ micro ATX

Specifications

67 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3+
Compatible processor seriesAMD Phenom FX, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom II X8
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory voltage1.5 V
Supported memory clock speeds1066,1333,1800 MHz
Maximum internal memory16 GB
Supported memory module capacities1GB, 2GB, 4GB

Storage controllers

Supported storage drive interfacesSATA II
RAID levels0, 1, 10, JBOD

Graphics

Parallel processing technology supportHybrid CrossFireX
On-board graphics cardYes
Graphics card familyAMD

Internal I/O

USB 2.0 connectors3
Number of SATA II connectors5
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Number of COM connectors1
Number of IEEE1394 connectors1

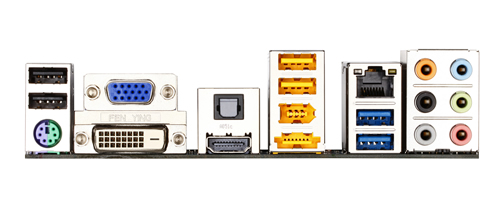

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.3a
DVI-D ports quantity1
Headphone outputs6
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 880G
Motherboard southbridgeAMD SB710
Audio chipRealtek ALC889
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsMicrosoft Windows 7/ Vista/ XP

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI Express slots version2.0
PCI slots2

BIOS

BIOS typeAWARD
BIOS memory size32 Mbit
ACPI version1.0b
Clear CMOS buttonYes

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Cables includedSATA
Drivers includedYes
Trial softwareNorton Internet Security

Other features

Controller interface typeAMD SB710
Quick installation guideYes
