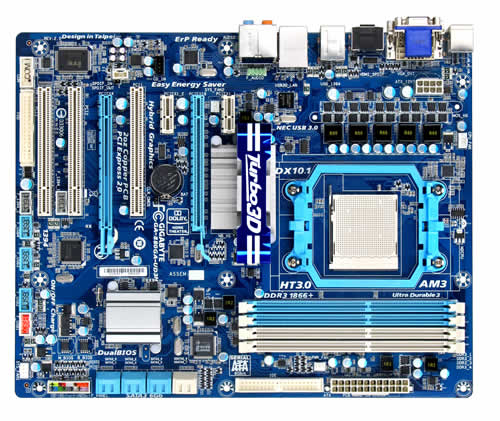

GIGABYTE GA-880GA-UD3H motherboard AMD

GIGABYTE GA-880GA-UD3H motherboard AMD

880G Socket AM3 ATX

Model GA-880GA-UD3HPart no. GA-880GA-UD3H-R3.1EAN 4719331815257

48 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0, 1, 5, 10, JBOD
  • On-board graphics cardNo
  • USB 2.0 ports quantity6
  • Networking featuresGigabit Ethernet
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0, 1, 5, 10, JBOD
On-board graphics card
No
USB 2.0 ports quantity
6
Networking features
Gigabit Ethernet
Brand
GIGABYTE
Category
Motherboard
Model
GA-880GA-UD3H
Part numbers
GA-880GA-UD3H-R3.1, GA-880GA-UD3H-R3, GA-880GA-UD3H-R2.2, GA-880GA-UD3H-R2.1, GA-880GA-UD3H-R2, GA-880GA-UD3H
EAN / UPC
4719331815257, 818313010353
Also known as
GIGABYTE GA-880GA-UD3H motherboard AMD 880G Socket AM3 ATX

Specifications

48 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3

Memory

Number of memory slots4
Memory voltage1.5 V
Maximum internal memory16 GB

Storage controllers

RAID levels0, 1, 5, 10, JBOD

Graphics

On-board graphics cardNo

Internal I/O

USB 2.0 connectors4
Number of SATA connectors8
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of IEEE1394 connectors1

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs6
Microphone inYes
S/PDIF out portYes
Digital audio optical out1

Network

Networking featuresGigabit Ethernet

Features

Motherboard form factorATX
Motherboard chipsetAMD 880G
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows 7/Vista/XP

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots2

BIOS

BIOS typeAWARD
ACPI version1.0

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Drivers includedYes
Bundled softwareNorton Internet Security

Other features

S/PDIF in connectorYes
Controller 2nd interface typeITE IT8720
Floppy disk drive connectorYes
