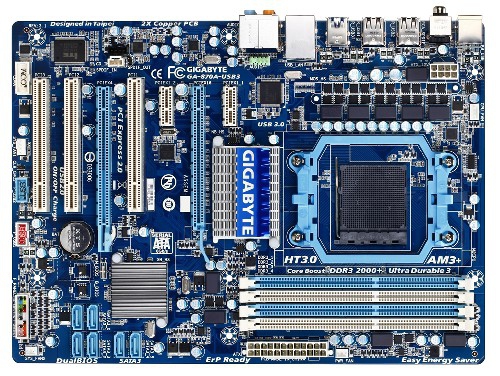

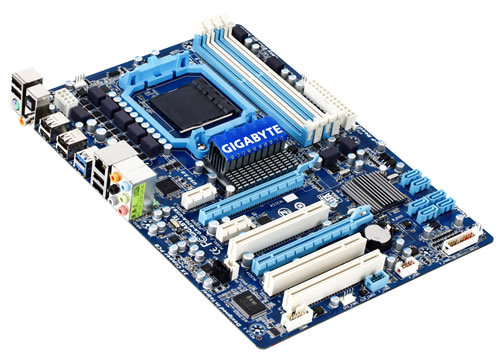

GIGABYTE GA-870A-USB3 motherboard Socket AM3 ATX

GIGABYTE GA-870A-USB3 motherboard Socket AM3 ATX

Model GA-870A-USB3EAN 818313012166

57 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0, 1, 5, 10, JBOD
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors2
  • USB 2.0 ports quantity8
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0, 1, 5, 10, JBOD
Parallel processing technology support
Not supported
USB 2.0 connectors
2
USB 2.0 ports quantity
8
Brand
GIGABYTE
Category
Motherboard
Model
GA-870A-USB3
Part numbers
GA-870A-USB3, GA-870A-USB3-R3.1, GA-870A-USB3-R3
EAN / UPC
818313012166, 4719331804220
Also known as
GIGABYTE GA-870A-USB3 motherboard Socket AM3 ATX

Specifications

57 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom II Dual-Core Mobile
Maximum number of SMP processors1
System bus rate5.2 GT/s

Memory

Number of memory slots4
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB

Storage controllers

RAID levels0, 1, 5, 10, JBOD

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors2
Number of SATA III connectors6
Number of SATA connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes

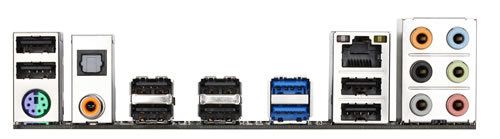

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs6
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard southbridgeAMD SB850
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows 7/Vista/XP

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots2
PCI slots3

BIOS

BIOS typeAWARD
BIOS memory size32 Mbit
ACPI version1.0b

Weight & dimensions

Width305 mm
Depth220 mm

Other features

S/PDIF in connectorYes
S/PDIF in portYes
Controller interface typeITE IT8720
