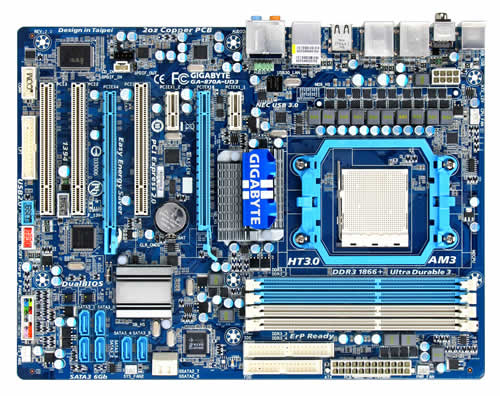

GIGABYTE GA-870A-UD3 (REV. 2.0)
Model GA-870A-UD3 (REV. 2.0)
54 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
- USB 2.0 ports quantity8
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 8
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-870A-UD3 (REV. 2.0)
- Part number
- GA-870A-UD3 (REV. 2.0)
- Also known as
- GIGABYTE GA-870A-UD3 (REV. 2.0) motherboard AMD 870 (RX881) Socket AM3 ATX
Specifications
54 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
| Compatible processor series | Athlon II |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1066,1333,1866 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 2 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of IEEE1394 connectors | 1 |
| Parallel connector | Yes |

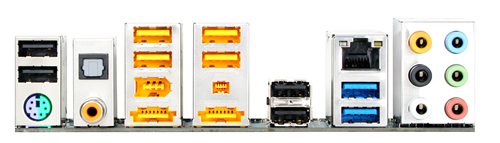

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 2 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 2 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD 870 (RX881) |
| Motherboard southbridge | AMD SB850 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 7/ Vista/ XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| ACPI version | 1.0b |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 230 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| S/PDIF in port | Yes |
