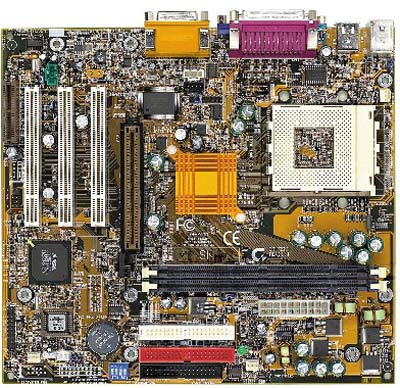

GIGABYTE GA-7ZMM motherboard Socket A (462) micro ATX
Model GA-7ZMM
43 specifications
- Processor manufacturerAMD
- Supported memory typesDDR-SDRAM
- Supported storage drive interfacesIDE
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
- Component forPC
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR-SDRAM
- Supported storage drive interfaces
- IDE
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- Component for
- PC
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-7ZMM
- Part number
- GA-7ZMM
- Also known as
- GIGABYTE GA-7ZMM motherboard Socket A (462) micro ATX
Specifications
43 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket A (462) |
| Compatible processor series | AMD Athlon |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory voltage | 3.3 V |
| Supported memory clock speeds | 133 MHz |
| Maximum internal memory | 1 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | IDE |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| ATX Power connector (24-pin) | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 0 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | VIA |
| Audio chip | Creative CT5880 |
| Power source type | ATX |
| Compatible operating systems | Windows 95/98/2000 |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 16 Mbit |
Other features
| Specification | Value |
|---|---|
| AGP x4 slots | 1 |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-7ZMM motherboard Socket A (462) micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-7ZMM motherboard Socket A (462) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-7ZMM motherboard Socket A (462) micro ATX
All motherboard comparisons- GIGABYTE GA-7ZMM motherboard Socket A (462) micro ATX vsGIGABYTE GA-770T-D3L motherboard AMD 770 Socket AM3 ATXCompare specs
- GIGABYTE GA-7ZMM motherboard Socket A (462) micro ATX vsGIGABYTE GA-H67M-D2 motherboard LGA 1155 (Socket H2) micro ATXCompare specs

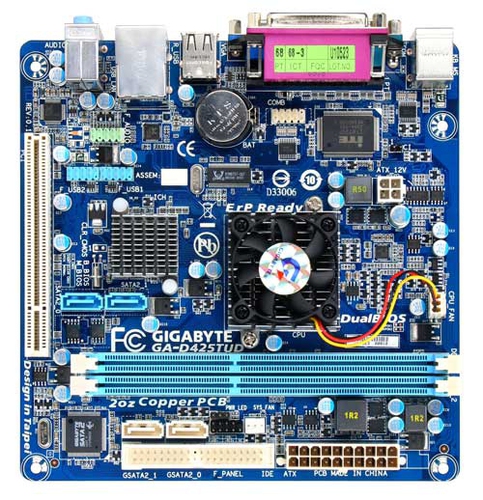

- GIGABYTE GA-7ZMM motherboard Socket A (462) micro ATX vsGIGABYTE GA-D425TUD (rev. 1.x)Compare specs

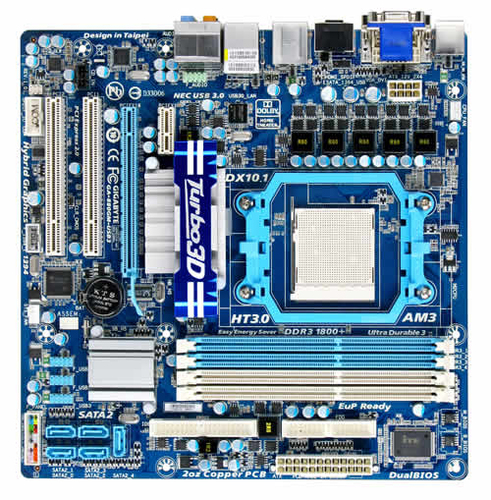

- GIGABYTE GA-7ZMM motherboard Socket A (462) micro ATX vsGIGABYTE GA-880GM-USB3 (rev. 1.0)Compare specs

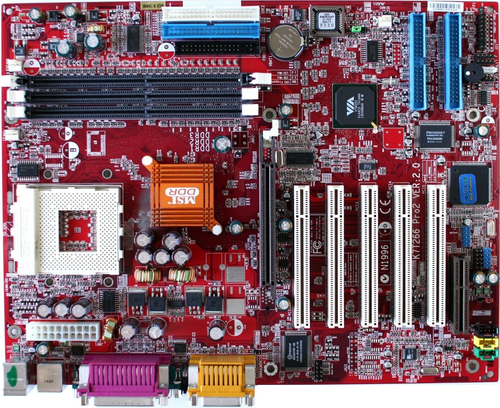

- GIGABYTE GA-7ZMM motherboard Socket A (462) micro ATX vsMSI K7T266 Pro2-RUCompare specs

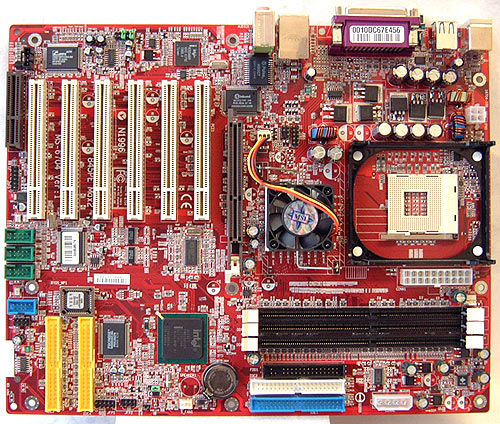

- GIGABYTE GA-7ZMM motherboard Socket A (462) micro ATX vsMSI 845PE MAX2Compare specs

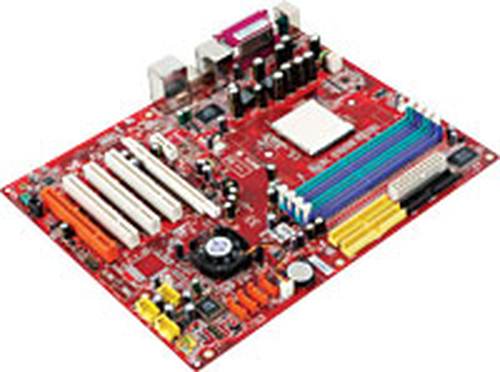

- GIGABYTE GA-7ZMM motherboard Socket A (462) micro ATX vsMSI K8N Neo4-F (PCB 1.0)Compare specs

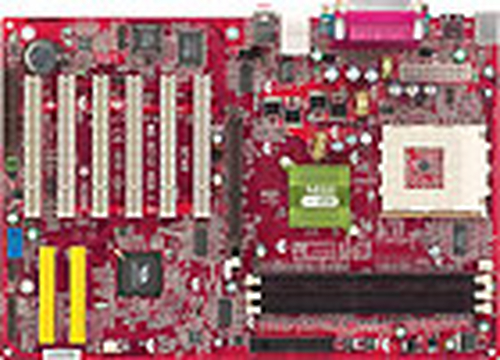

- GIGABYTE GA-7ZMM motherboard Socket A (462) micro ATX vsMSI KT4V motherboard VIA KT400 Socket A (462) ATXCompare specs
