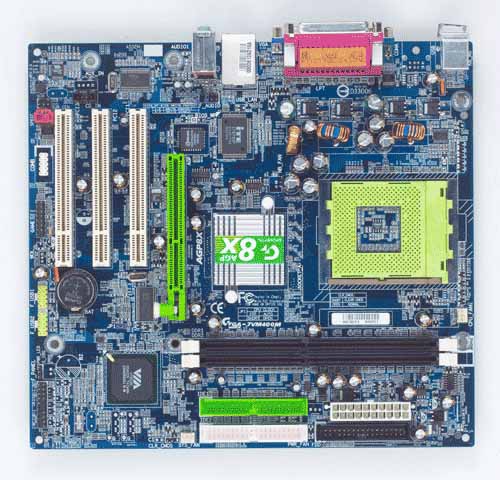

GIGABYTE GA-7VM400M (rev. 2.x)
Model GA-7VM400M (rev. 2.x)Part no. GA-7VM400M
38 specifications
- Processor manufacturerAMD
- Number of memory slots2
- Parallel processing technology supportNot supported
- Networking featuresFast Ethernet
- Motherboard form factormicro ATX
- PCI slots3
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- Parallel processing technology support
- Not supported
- Networking features
- Fast Ethernet
- Motherboard form factor
- micro ATX
- PCI slots
- 3
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-7VM400M (rev. 2.x)
- Part number
- GA-7VM400M
- Also known as
- GIGABYTE GA-7VM400M (rev. 2.x) Socket A (462) micro ATX
Specifications
38 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket A (462) |
| Compatible processor series | AMD Athlon, AMD Athlon XP |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Supported memory clock speeds | 200,266 MHz |
| Maximum internal memory | 2 GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 1 |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio output channels | 6.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 3 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 233 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security - Norton Anti Virus - Norton Personal Firewall - Norton Privacy Control - Norton Parental Control - Norton Spam Alert GIGABYTE Windows Utility Manager Adobe Acrobat Reader |
Other features
| Specification | Value |
|---|---|
| AGP x8 slots | 1 |
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | Yes |
| Quick installation guide | Yes |
