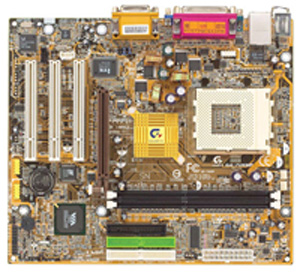

GA-7VKMP motherboard Socket A (462) micro ATX
Model GA-7VKMP
10 specifications
- Processor manufacturerAMD
- Maximum internal memory1 GB
- Networking featuresRealtek 8100
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- AMD
- Maximum internal memory
- 1 GB
- Networking features
- Realtek 8100
- Motherboard form factor
- micro ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-7VKMP
- Part number
- GA-7VKMP
- Also known as
- GIGABYTE GA-7VKMP motherboard Socket A (462) micro ATX
Specifications
10 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket A (462) |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 1 GB |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek 8100 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP 4X slot 3 x PCI slots support 33MHz and PCI 2.2 compliant |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 243 x 210 |
| Audio output | Sigamtel 9721(For Rev.3.2) Realtek ALC101(For Rev.3.3 and later |
| I/O ports | 2 x ATA 66/100/133 bus master IDE ports 1 x FDD, 2 x HDD and 1 x CD audio input IrDA(1x5) and COM2 on board GBT standard front panel 2 x USB2.0 connectors (support 4 ports by cable) 2 x USB2.0 ports 1 x COM port 1 x RJ45 LAN port 1 x LPT PS/2 Keyboard, PS/2 Mouse and 1 x VGA port |
