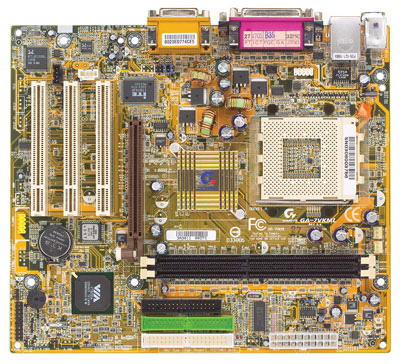

GIGABYTE GA-7VKML motherboard Socket A (462) micro ATX
Model GA-7VKML
33 specifications
- Processor manufacturerAMD
- Number of memory slots2
- Networking featuresFast Ethernet
- Motherboard form factormicro ATX
- PCI slots3
- Width244 mm
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- Networking features
- Fast Ethernet
- Motherboard form factor
- micro ATX
- PCI slots
- 3
- Width
- 244 mm
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-7VKML
- Part number
- GA-7VKML
- Also known as
- GIGABYTE GA-7VKML motherboard Socket A (462) micro ATX
Specifications
33 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket A (462) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of Parallel ATA connectors | 2 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC201A |
| Power source type | ATX |
| Compatible operating systems | Windows 98/2000/ME/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 3 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 215 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| AGP x4 slots | 1 |
| CNR slot | Yes |
| Floppy disk drive connector | Yes |
