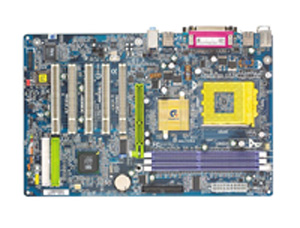

GA-7S748 motherboard Socket A (462) ATX
Model GA-7S748
10 specifications
- Processor manufacturerAMD
- Maximum internal memory3 GB
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Maximum internal memory
- 3 GB
- Motherboard form factor
- ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-7S748
- Part number
- GA-7S748
- Also known as
- GIGABYTE GA-7S748 motherboard Socket A (462) ATX
Specifications
10 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket A (462) |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 3 GB |
| Flash memory | 2 MB |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP slot (8X/4X-AGP 3.0 compliant) 5 x PCI slots (PCI 2.2 compliant) |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security Norton Anti Virus Norton Personal Firewall Norton Privacy Control Norton Parental Control Norton Spam Alert GIGABYTE Windows Utility Manager Adobe Acrobat Reader |
Other features
| Specification | Value |
|---|---|
| Audio output | Realtek ALC655 AC97 codec Chip |
| I/O ports | 1 x FDD port 2 x UDMA ATA133/100/66 Bus Master IDE ports 1 x USB 2.0 connector (support 2 ports) 2 x cooling fan pin header 1 x GAME/ MIDI connector PS/2 Keyboard / Mouse 4 x USB 2.0 ports 2 x COM ports Audio (1 x Line-in / 1 x Line-out / 1 x Mic) port 1 x LPT |
