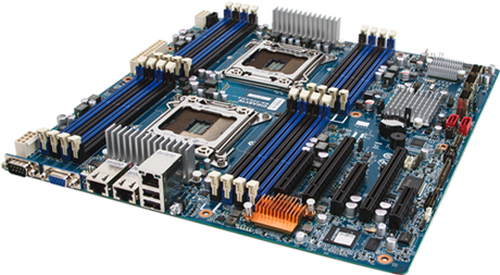

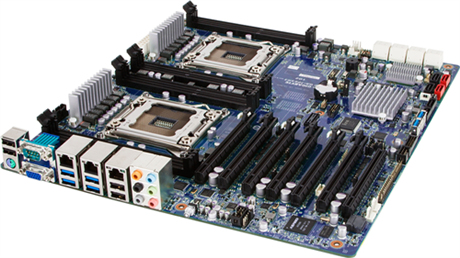

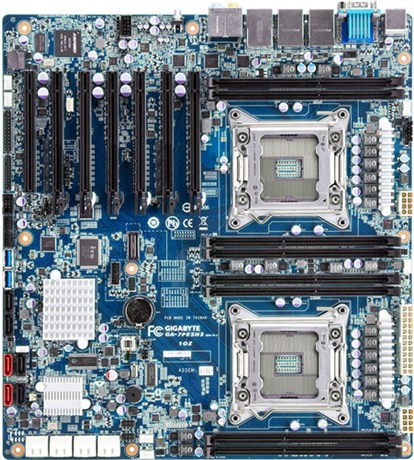

GIGABYTE GA-7PESH3 motherboard Intel® C602 LGA 2011 (Socket R)
Model GA-7PESH3EAN 818313017307
57 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Graphics card familyAspeed
- USB 2.0 connectors1
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Graphics card family
- Aspeed
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 4
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-7PESH3
- Part number
- GA-7PESH3
- EAN / UPC
- 818313017307, 4719331803148
- Also known as
- GIGABYTE GA-7PESH3 motherboard Intel® C602 LGA 2011 (Socket R)
Specifications
57 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011 (Socket R) |
| Compatible processor series | Intel® Core™ i7 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| Memory voltage | 1.35,1.5 V |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1866 MHz |
| Maximum RDIMM memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID levels | 0, 1, 5, 10, 1E |
Graphics
| Specification | Value |
|---|---|
| Graphics card family | Aspeed |
| Maximum resolution | 1920 x 1200 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 4 |
| Number of SATA connectors | 1 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 3 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® 82574L |
Features
| Specification | Value |
|---|---|
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® C602 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 3 |
| PCI Express x16 slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |

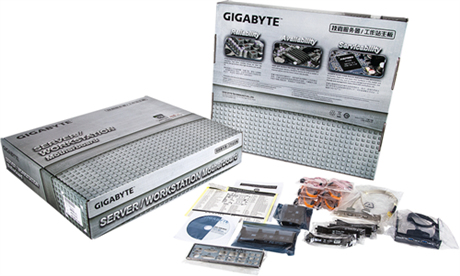

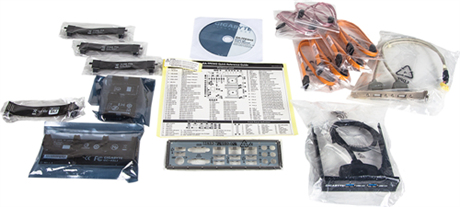

Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Maximum UDIMM memory | 8 GB |
| IPMI 2.0 slot | Yes |
What people say
Reviews & ratings
GIGABYTE GA-7PESH3 motherboard Intel® C602 LGA 2011 (Socket R)
No reviews yet
Be the first to tell others how GIGABYTE GA-7PESH3 motherboard Intel® C602 LGA 2011 (Socket R) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-7PESH3 motherboard Intel® C602 LGA 2011 (Socket R)
All motherboard comparisons- GIGABYTE GA-7PESH3 motherboard Intel® C602 LGA 2011 (Socket R) vsGIGABYTE GA-H81M-D2V motherboard Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs
- GIGABYTE GA-7PESH3 motherboard Intel® C602 LGA 2011 (Socket R) vsGIGABYTE GA-H81M-S2PH motherboard Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs
- GIGABYTE GA-7PESH3 motherboard Intel® C602 LGA 2011 (Socket R) vsGIGABYTE GA-6PXSV4 motherboard Intel® C604 LGA 2011 (Socket R) ATXCompare specs
- GIGABYTE GA-7PESH3 motherboard Intel® C602 LGA 2011 (Socket R) vsGIGABYTE GA-7PESH2 motherboard Intel® C602 LGA 2011 (Socket R)Compare specs
- GIGABYTE GA-7PESH3 motherboard Intel® C602 LGA 2011 (Socket R) vsMSI Z97A GAMING 7Compare specs
- GIGABYTE GA-7PESH3 motherboard Intel® C602 LGA 2011 (Socket R) vsMSI H87-G43 GAMINGCompare specs
- GIGABYTE GA-7PESH3 motherboard Intel® C602 LGA 2011 (Socket R) vsASUS H61M-K Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs

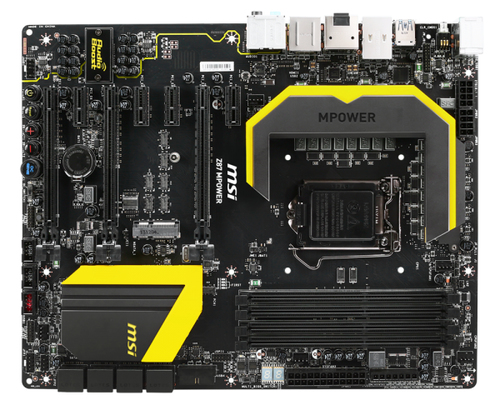

- GIGABYTE GA-7PESH3 motherboard Intel® C602 LGA 2011 (Socket R) vsMSI Z87 MPOWER SPCompare specs
