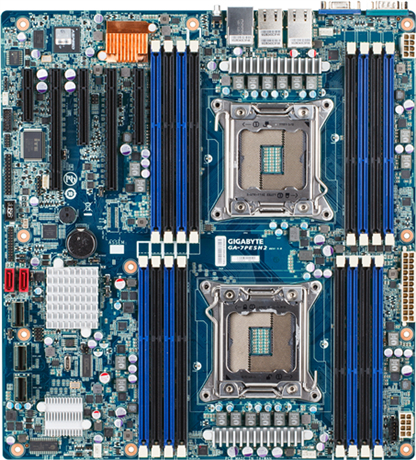

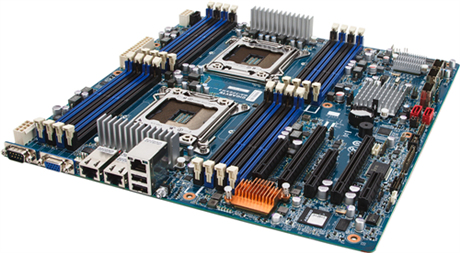

GIGABYTE GA-7PESH2 motherboard Intel® C602 LGA 2011 (Socket R)
Model GA-7PESH2EAN 818313017291
54 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- Graphics card familyAspeed
- USB 2.0 connectors1
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- Graphics card family
- Aspeed
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-7PESH2
- Part number
- GA-7PESH2
- EAN / UPC
- 818313017291
- Also known as
- GIGABYTE GA-7PESH2 motherboard Intel® C602 LGA 2011 (Socket R)
Specifications
54 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011 (Socket R) |
| Compatible processor series | Intel® Core™ i7 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 16 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| Memory voltage | 1.35,1.5 V |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1866 MHz |
| Maximum RDIMM memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10, 1E |
Graphics
| Specification | Value |
|---|---|
| Graphics card family | Aspeed |
| Maximum resolution | 1920 x 1200 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 3 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit |
| LAN controller | Intel® X540 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® C602 |
| Power source type | ATX |
| Linux operating systems supported | RedHat EL Linux 5.0 |
| Windows operating systems supported | Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 2 |
| PCI Express x16 slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SAS, SATA |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Maximum UDIMM memory | 8 GB |
| IPMI 2.0 slot | Yes |
