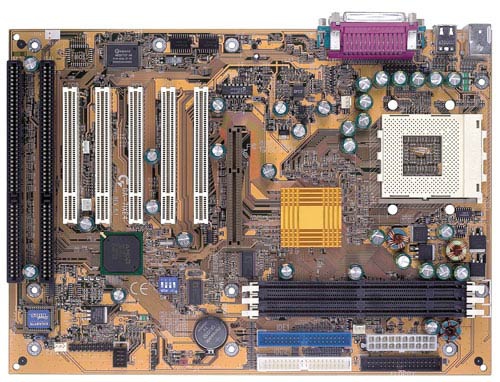

GIGABYTE GA-7IXE4 motherboard Socket A (462) ATX
Model GA-7IXE4
42 specifications
- Processor manufacturerAMD
- Supported memory typesDDR-SDRAM
- Supported storage drive interfacesIDE
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
- Wake-on-LAN readyYes
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR-SDRAM
- Supported storage drive interfaces
- IDE
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- Wake-on-LAN ready
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-7IXE4
- Part number
- GA-7IXE4
- Also known as
- GIGABYTE GA-7IXE4 motherboard Socket A (462) ATX
Specifications
42 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket A (462) |
| Compatible processor series | AMD Athlon |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR-SDRAM |
| Number of memory slots | 3 |
| Memory slots type | DIMM |
| Memory voltage | 3.3 V |
| Supported memory clock speeds | 200 MHz |
| Maximum internal memory | 0.768 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | IDE |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| Number of COM connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 0 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
Network
| Specification | Value |
|---|---|
| Wake-on-LAN ready | Yes |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Power source type | ATX |
| Compatible operating systems | Windows 95/98/2000 |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 5 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
