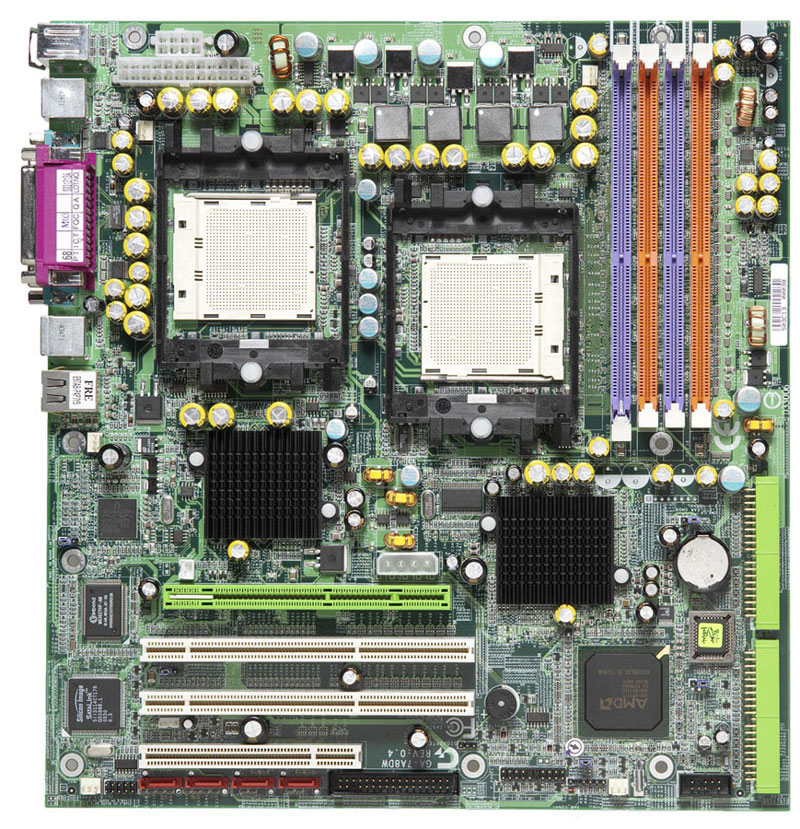

GIGABYTE GA-7A8DW motherboard Socket 940 Extended ATX
Model GA-7A8DW
24 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 0+1
- Networking featuresGigabit Ethernet
- Motherboard form factorExtended ATX
- BIOS typePhoenix
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- Extended ATX
- BIOS type
- Phoenix
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-7A8DW
- Part number
- GA-7A8DW
- Also known as
- GIGABYTE GA-7A8DW motherboard Socket 940 Extended ATX
Specifications
24 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 940 |
| Compatible processor series | AMD Opteron |
| Maximum number of SMP processors | 2 |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1 |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA connectors | 4 |
| ATX Power connector (24-pin) | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| COM ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | Extended ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x PCI-X 133/100/66 MHz, 1 x PCI 32/33 MHz, 1 x AGP 4x/8X Pro |
BIOS
| Specification | Value |
|---|---|
| BIOS type | Phoenix |
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 287 mm |
Other features
| Specification | Value |
|---|---|
| RAID controller type | SATA |
