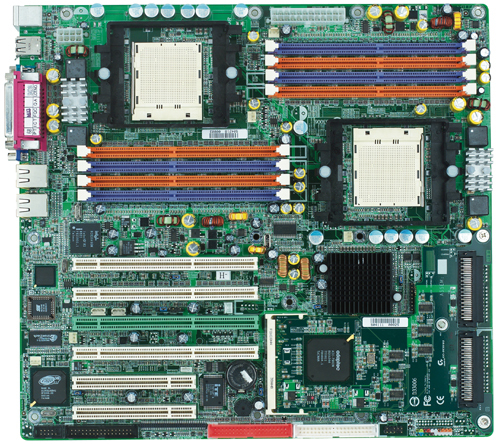

GIGABYTE GA-7A8DRH motherboard Socket 940 Extended ATX
Model GA-7A8DRH
24 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1
- Maximum graphics card memory8 MB
- ATX Power connector (24-pin)Yes
- Ethernet LAN (RJ-45) ports2
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1
- Maximum graphics card memory
- 8 MB
- ATX Power connector (24-pin)
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-7A8DRH
- Part number
- GA-7A8DRH
- Also known as
- GIGABYTE GA-7A8DRH motherboard Socket 940 Extended ATX
Specifications
24 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 940 |
| Compatible processor series | AMD Opteron |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
| Graphics card | Rage XL |
Internal I/O
| Specification | Value |
|---|---|
| ATX Power connector (24-pin) | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mbps |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | Extended ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 4xPCI-X, 2xPCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
Other features
| Specification | Value |
|---|---|
| I/O ports | 2xUSB1.1 |
| RAID controller type | Adaptec 7902W SCSI U320 |
