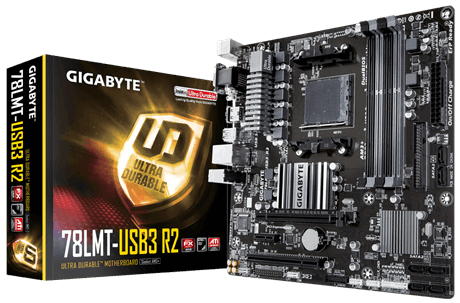

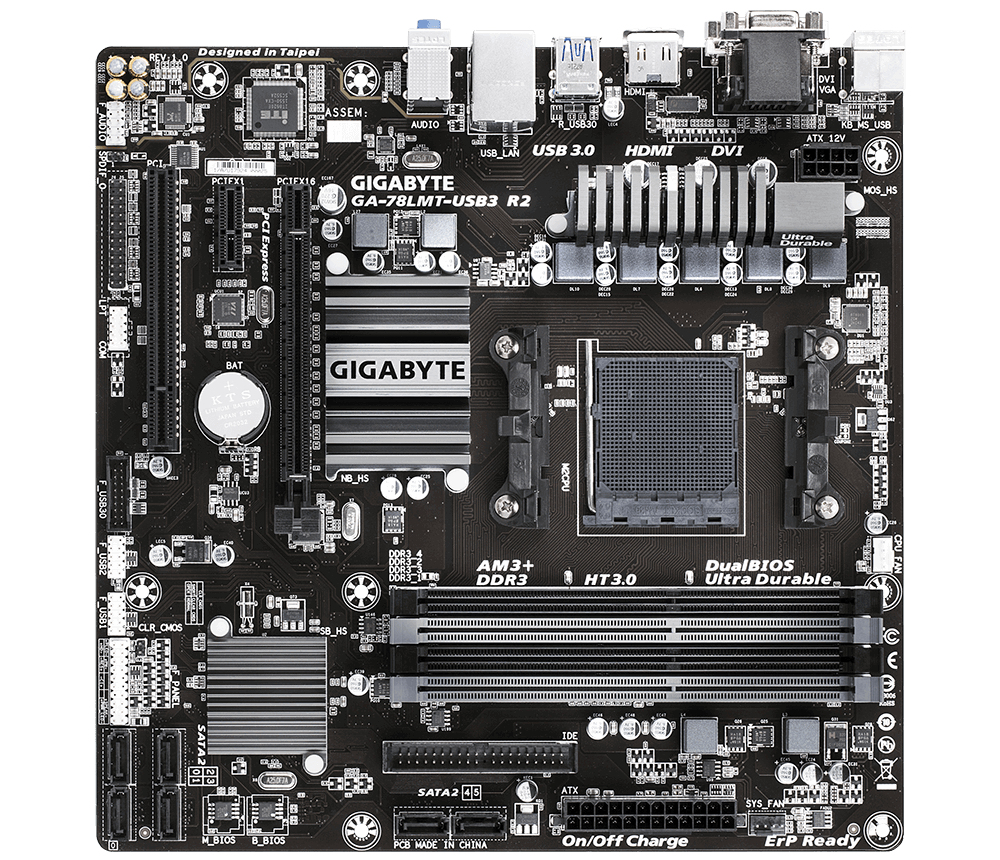

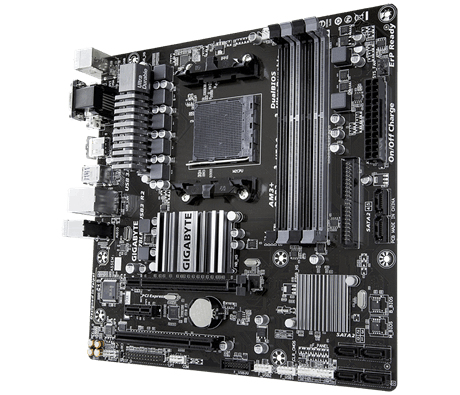

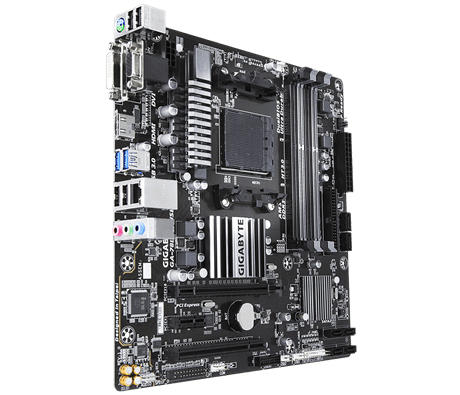

GIGABYTE GA-78LMT-USB3 R2 (rev. 1.0)
Model GA-78LMT-USB3 R2 (rev. 1.0)Part no. GA-78LMT-USB3 R2EAN 889523012048
44 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- RAID levels0, 1, 10, JBOD
- USB 2.0 connectors4
- Component forPC
- PCI Express x1 (Gen 2.x) slots1
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- RAID levels
- 0, 1, 10, JBOD
- USB 2.0 connectors
- 4
- Component for
- PC
- PCI Express x1 (Gen 2.x) slots
- 1
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-78LMT-USB3 R2 (rev. 1.0)
- Part number
- GA-78LMT-USB3 R2
- EAN / UPC
- 889523012048, 4719331802578
- Also known as
- GIGABYTE GA-78LMT-USB3 R2 (rev. 1.0) AMD 760G Socket AM3+ mini ATX
Specifications
44 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3+ |
| Compatible processor series | AMD Phenom II x3 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA II connectors | 2 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| 12V power connector | Yes |
| Serial port headers | 1 |

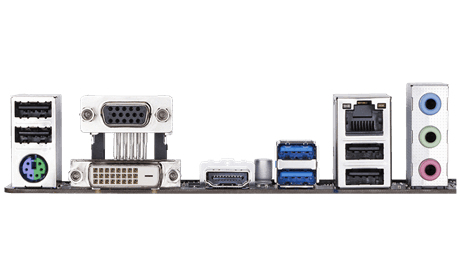

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD 760G |
| Motherboard southbridge | AMD SB710 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| ACPI version | 1.0b |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton® Internet Security |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| Parallel port via internal header | Yes |
