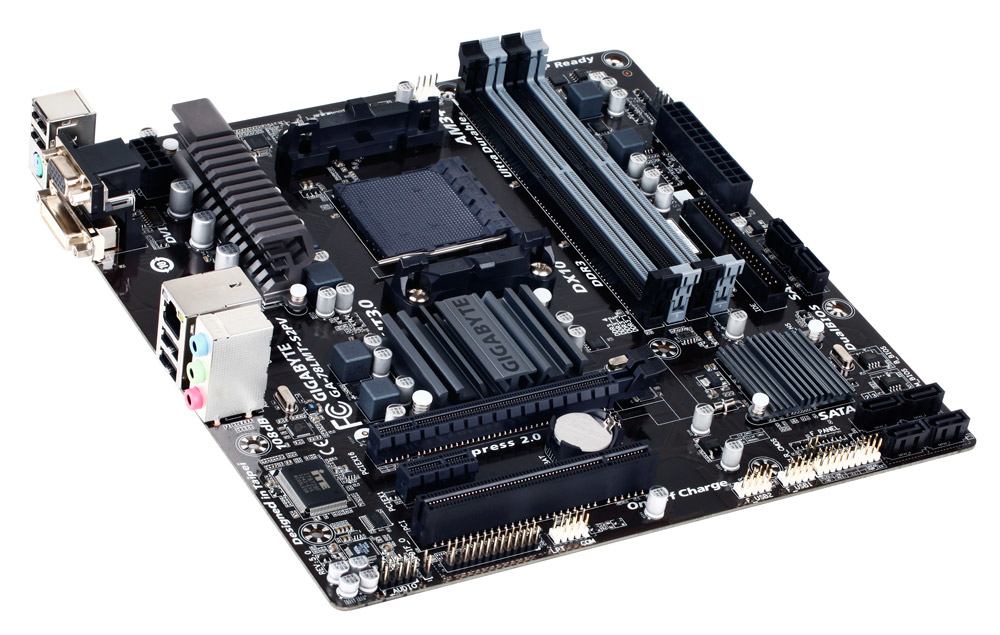

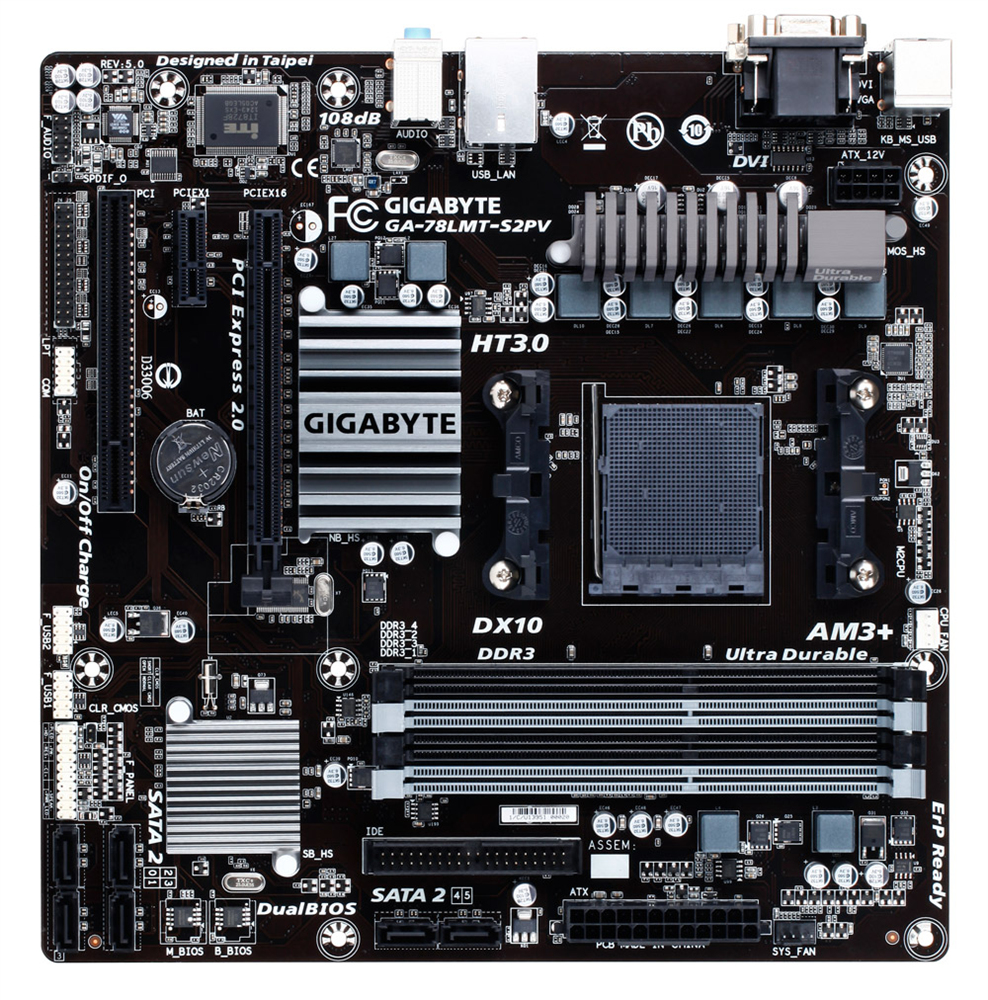

GIGABYTE GA-78LMT-S2PV motherboard AMD
760G Socket AM3+ micro ATX
Model GA-78LMT-S2PVEAN 4719331842215
48 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II
- USB 2.0 connectors4
- Ethernet LANYes
- Component forPC
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II
- USB 2.0 connectors
- 4
- Ethernet LAN
- Yes
- Component for
- PC
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-78LMT-S2PV
- Part number
- GA-78LMT-S2PV
- EAN / UPC
- 4719331842215
- Also known as
- GIGABYTE GA-78LMT-S2PV motherboard AMD 760G Socket AM3+ micro ATX
Specifications
48 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3+ |
| Compatible processor series | AMD Phenom II Dual-Core Mobile, AMD Phenom II Quad-Core Mobile, AMD Phenom II Triple-Core Mobile, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom II X8 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1066,1333 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 6 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Serial port headers | 1 |

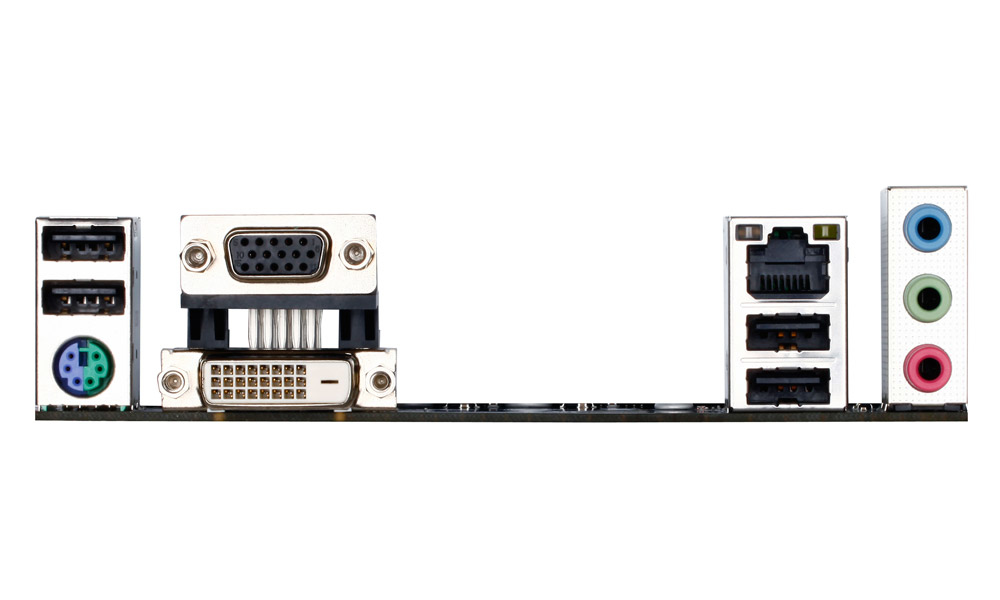

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD 760G |
| Motherboard southbridge | AMD SB710 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 32 Mbit |
| ACPI version | 1.0b |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-78LMT-S2PV motherboard AMD
No reviews yet
Be the first to tell others how GIGABYTE GA-78LMT-S2PV motherboard AMD works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-78LMT-S2PV motherboard AMD

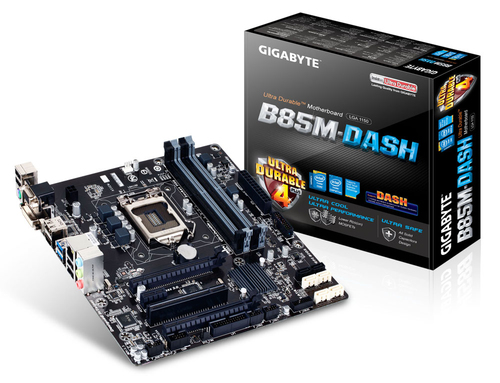

All motherboard comparisons- GIGABYTE GA-78LMT-S2PV motherboard AMD vsGIGABYTE GA-B85M-DASH (rev. 1.1)Compare specs

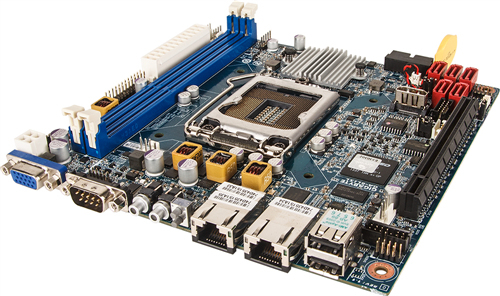

- GIGABYTE GA-78LMT-S2PV motherboard AMD vsGIGABYTE GA-6LISL motherboard Intel® C226 LGA 1150 (Socket H3) Mini-ITXCompare specs
- GIGABYTE GA-78LMT-S2PV motherboard AMD vsGIGABYTE GA-F2A58M-DS2 motherboard AMD A58 Socket FM2+ micro ATXCompare specs
- GIGABYTE GA-78LMT-S2PV motherboard AMD vsGIGABYTE GA-H97-Gaming 3 (rev. 1.0)Compare specs
- GIGABYTE GA-78LMT-S2PV motherboard AMD vsASUS A88X-GAMER AMD A88X Socket FM2+ ATXCompare specs

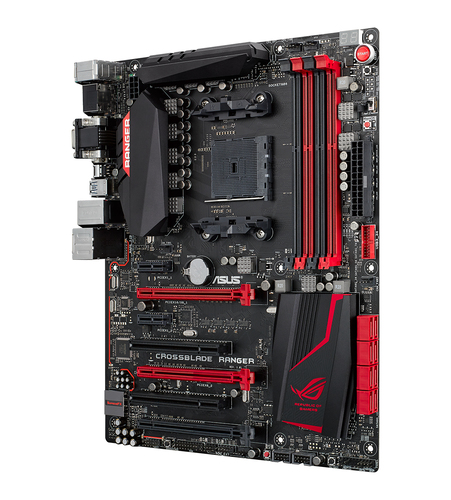

- GIGABYTE GA-78LMT-S2PV motherboard AMD vsASUS CROSSBLADE RANGERCompare specs
