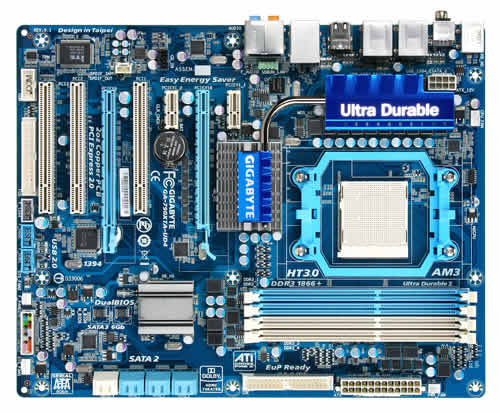

GIGABYTE GA-770TA-UD3 motherboard AMD 770 Socket AM3 ATX

GIGABYTE GA-770TA-UD3 motherboard AMD 770 Socket AM3 ATX

Model GA-770TA-UD3EAN 818313009449

49 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0, 1, 5, 10, JBOD
  • USB 2.0 connectors2
  • USB 2.0 ports quantity6
  • Networking features10/100/1000 Mbit
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0, 1, 5, 10, JBOD
USB 2.0 connectors
2
USB 2.0 ports quantity
6
Networking features
10/100/1000 Mbit
Brand
GIGABYTE
Category
Motherboard
Model
GA-770TA-UD3
Part number
GA-770TA-UD3
EAN / UPC
818313009449, 4719331846176, 5052179588617, 5052461678668
Also known as
GIGABYTE GA-770TA-UD3 motherboard AMD 770 Socket AM3 ATX

Specifications

49 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3

Memory

Number of memory slots4
Memory voltage1.5 V
Maximum internal memory16 GB

Storage controllers

RAID levels0, 1, 5, 10, JBOD

Internal I/O

USB 2.0 connectors2
Number of SATA connectors8
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of IEEE1394 connectors1

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity2
PS/2 ports quantity2
Firewire (IEEE 1394) ports2
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs6
S/PDIF out portYes
Parallel ports quantity1
Serial ports quantity1

Network

Networking features10/100/1000 Mbit

Features

Motherboard form factorATX
Motherboard chipsetAMD 770
Audio chipRealtek ALC888
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsMS Windows 7/Vista/XP
Overclocking featuresDDR3 1866

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI slots4

Weight & dimensions

Width305 mm
Depth230 mm

Packaging content

Bundled softwareNorton Internet Security (OEM)

Other features

S/PDIF in portYes
Controller 2nd interface typeATA-133/100/66/33
Controller interface typeMarvell 9128, JMB362, iTE IT8720
Dimensions (WxDxH)305 x 230 x 0 mm
Floppy disk drive connectorYes
Special features@BIOS Q-Flash Xpress BIOS Rescue Download Center Xpress Install Xpress Recovery2 EasyTune Easy Energy Saver Time Repair Q-Share
I/O ports1 x IDE 1 x 24-pin ATX 1 x 8-pin ATX 12V 2 x system fan 1 x North Bridge fan 1 x front panel 1 x CMOS jumper
