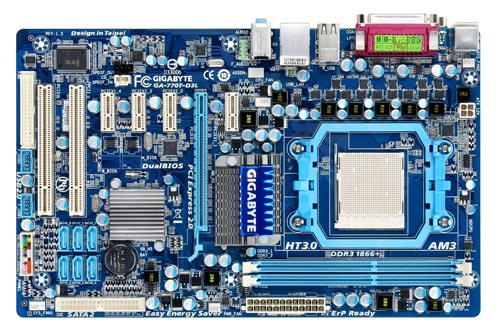

GIGABYTE GA-770T-D3L motherboard AMD 770 Socket AM3 ATX
Model GA-770T-D3LEAN 4719331820237
57 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1, 0+1
- Parallel processing technology supportNot supported
- USB 2.0 ports quantity8
- LAN controllerRealtek RTL8111C
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1, 0+1
- Parallel processing technology support
- Not supported
- USB 2.0 ports quantity
- 8
- LAN controller
- Realtek RTL8111C
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-770T-D3L
- Part numbers
- GA-770T-D3L, GA-770T-D3L-R3.1, GA-770T-D3L-R1.x
- EAN / UPC
- 4719331820237
- Also known as
- GIGABYTE GA-770T-D3L motherboard AMD 770 Socket AM3 ATX
Specifications
57 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 1066,1333 MHz |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |

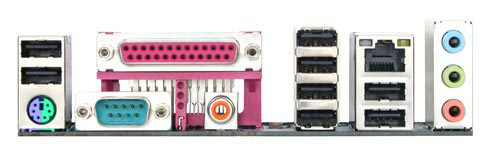

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | Gigabit |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 770 |
| Audio chip | Realtek ALC888 / ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows XP, Vista, 7 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 4 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 16 Mbit |
| ACPI version | 1.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 190 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | Norton Internet Security OEM |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| S/PDIF in port | Yes |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-770T-D3L motherboard AMD 770 Socket AM3 ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-770T-D3L motherboard AMD 770 Socket AM3 ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-770T-D3L motherboard AMD 770 Socket AM3 ATX
All motherboard comparisons- GIGABYTE GA-770T-D3L motherboard AMD 770 Socket AM3 ATX vsGIGABYTE GA-H67M-D2 motherboard LGA 1155 (Socket H2) micro ATXCompare specs
- GIGABYTE GA-770T-D3L motherboard AMD 770 Socket AM3 ATX vsGIGABYTE GA-H67M-UD2H motherboard LGA 1155 (Socket H2) micro ATXCompare specs
- GIGABYTE GA-770T-D3L motherboard AMD 770 Socket AM3 ATX vsGIGABYTE GA-7ZMM motherboard Socket A (462) micro ATXCompare specs
- GIGABYTE GA-770T-D3L motherboard AMD 770 Socket AM3 ATX vsGIGABYTE GA-D425TUD (rev. 1.x)Compare specs
- GIGABYTE GA-770T-D3L motherboard AMD 770 Socket AM3 ATX vsMSI 694D ProCompare specs
- GIGABYTE GA-770T-D3L motherboard AMD 770 Socket AM3 ATX vsMSI KT4M motherboard VIA KT400 Socket A (462) micro ATXCompare specs
- GIGABYTE GA-770T-D3L motherboard AMD 770 Socket AM3 ATX vsASUS P5G41T-M/CSM motherboard Intel® G41 LGA 775 (Socket T) micro ATXCompare specs

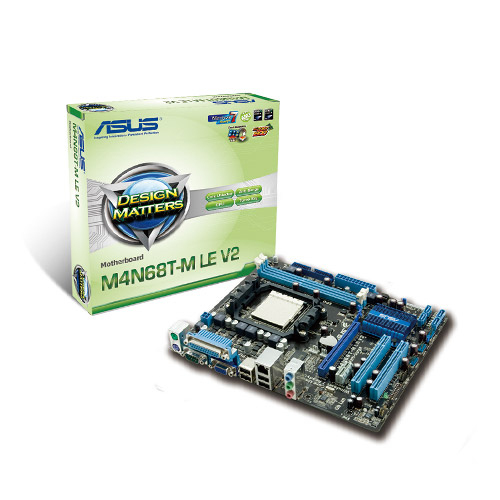

- GIGABYTE GA-770T-D3L motherboard AMD 770 Socket AM3 ATX vsASUS M4N68T-M LE V2Compare specs
