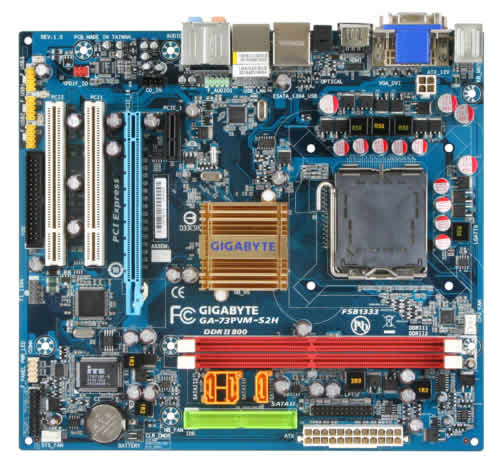

GIGABYTE GA-73PVM-S2H motherboard LGA 775 (Socket T) micro ATX
Model GA-73PVM-S2HEAN 818313004338
38 specifications
- Processor manufacturerIntel
- Number of memory slots2
- RAID levels0, 1, 0+1, 5
- Graphics cardGeForce 7100
- USB 2.0 connectors3
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- RAID levels
- 0, 1, 0+1, 5
- Graphics card
- GeForce 7100
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-73PVM-S2H
- Part number
- GA-73PVM-S2H
- EAN / UPC
- 818313004338, 4719331838164
- Also known as
- GIGABYTE GA-73PVM-S2H motherboard LGA 775 (Socket T) micro ATX
Specifications
38 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, 5 |
Graphics
| Specification | Value |
|---|---|
| Graphics card | GeForce 7100 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 3 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 6 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC889A |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 X PCIe x16 1 x PCIe x1 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS type | Award |
| BIOS memory size | 32 Mbit |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
