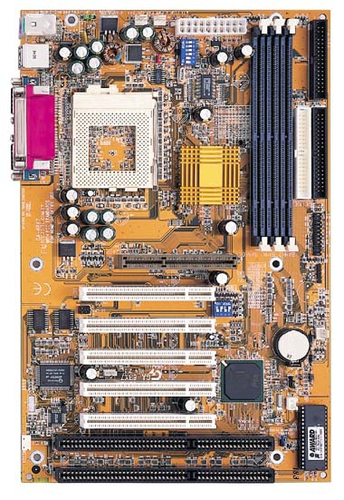

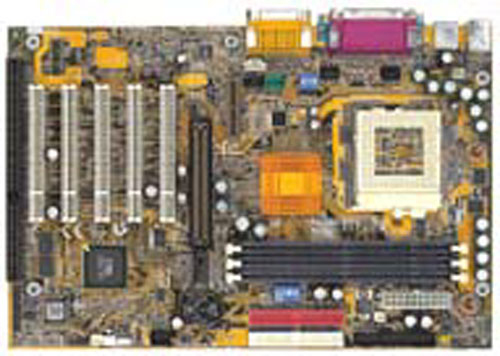

GIGABYTE GA-6VXDR7 motherboard Socket 370 ATX
Model GA-6VXDR7
35 specifications
- Processor manufacturerIntel
- Supported memory typesDDR-SDRAM
- Supported storage drive interfacesIDE
- Parallel processing technology supportNot supported
- USB 3.2 Gen 1 (3.1 Gen 1) connectors0
- Networking featuresFast Ethernet
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR-SDRAM
- Supported storage drive interfaces
- IDE
- Parallel processing technology support
- Not supported
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 0
- Networking features
- Fast Ethernet
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-6VXDR7
- Part number
- GA-6VXDR7
- Also known as
- GIGABYTE GA-6VXDR7 motherboard Socket 370 ATX
Specifications
35 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 370 |
| Compatible processor series | Intel® Pentium® III |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 133 MHz |
| Maximum internal memory | 2 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | IDE |
| RAID levels | 1 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking features | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | VIA |
| Power source type | ATX |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Graphics controller | ATI Rage XL |
