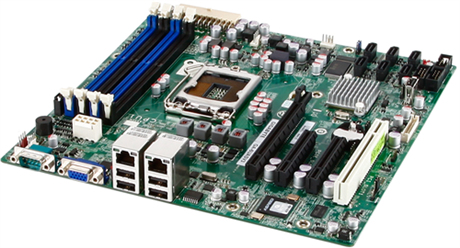

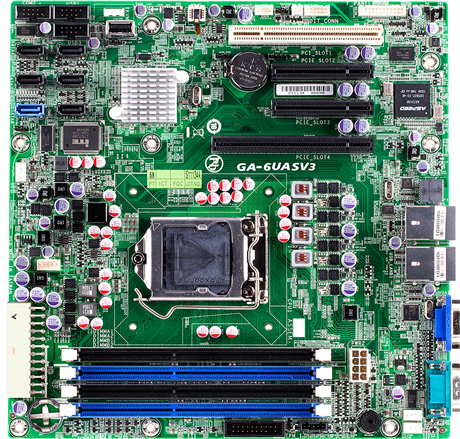

GIGABYTE GA-6UASV3 (rev. 1.0)
Model GA-6UASV3 (rev. 1.0)Part no. GA-6UASV3EAN 818313017345
39 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA
- On-board graphics card modelAspeed AST2150
- USB 2.0 connectors4
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA
- On-board graphics card model
- Aspeed AST2150
- USB 2.0 connectors
- 4
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-6UASV3 (rev. 1.0)
- Part number
- GA-6UASV3
- EAN / UPC
- 818313017345, 4719331832148
- Also known as
- GIGABYTE GA-6UASV3 (rev. 1.0) Intel® C202 LGA 1155 (Socket H2) micro ATX
Specifications
39 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Intel Xeon series | E3-1200 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 1066,1333,1600 MHz |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2150 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA II connectors | 6 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Serial port headers | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® 82574L, Intel® 82579LM |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel® C202 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| Maximum UDIMM memory | 32 GB |
| Number of DIMM slots | 4 |
| Number of processors supported | 1 |
