GIGABYTE GA-6QPCV-RH motherboard Intel GM45 LGA 3647 (Socket P) mini ATX
Model GA-6QPCV-RH
38 specifications
- Processor manufacturerIntel
- Supported memory typesDDR2-SDRAM
- RAID levels0+1
- On-board graphics cardYes
- USB 2.0 connectors6
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR2-SDRAM
- RAID levels
- 0+1
- On-board graphics card
- Yes
- USB 2.0 connectors
- 6
- USB 2.0 ports quantity
- 4
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-6QPCV-RH
- Part number
- GA-6QPCV-RH
- Also known as
- GIGABYTE GA-6QPCV-RH motherboard Intel GM45 LGA 3647 (Socket P) mini ATX
Specifications
38 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 3647 (Socket P) |
| Compatible processor series | Intel® Core™2 Duo |
| Maximum number of SMP processors | 1 |
| Processor system buses supported | 667,800,1066 MHz |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR2-SDRAM |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 667,800 MHz |
| Supported memory module capacities | 4GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0+1 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Graphics card | GMA 4500 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 4 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Number of COM connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) out | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® 82567LM, Intel® 82574L |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | mini ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel GM45 |
| Motherboard southbridge | Intel ICH9M-E |
| Audio output channels | 7.1 channels |
| Power source type | ATX, DC |
| DC input voltage | 19 V |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 1 |
Processor special features
| Specification | Value |
|---|---|
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
What people say
Reviews & ratings
GIGABYTE GA-6QPCV-RH motherboard Intel GM45 LGA 3647 (Socket P) mini ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-6QPCV-RH motherboard Intel GM45 LGA 3647 (Socket P) mini ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-6QPCV-RH motherboard Intel GM45 LGA 3647 (Socket P) mini ATX

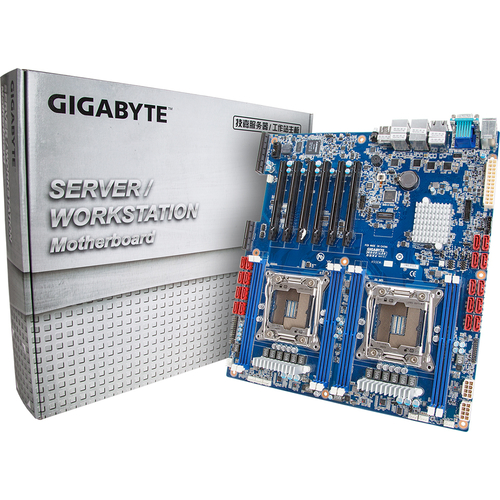

All motherboard comparisons- GIGABYTE GA-6QPCV-RH motherboard Intel GM45 LGA 3647 (Socket P) mini ATX vsGIGABYTE MD70-HB1 motherboard Intel® C612 LGA 2011-v3 Extended ATXCompare specs
