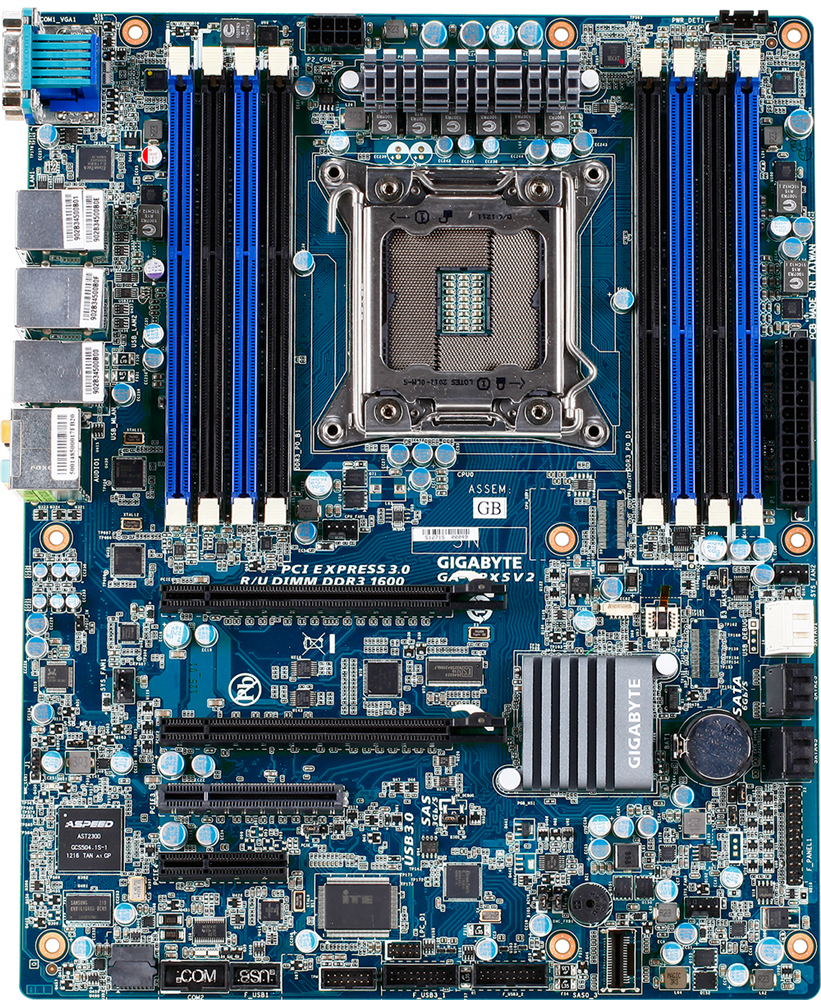

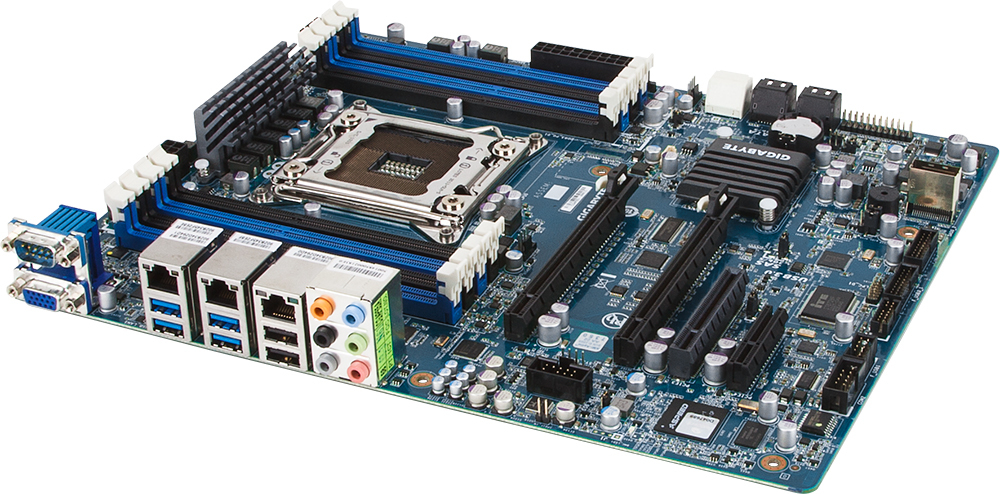

GIGABYTE GA-6PXSV2 (rev. 1.0)

GIGABYTE GA-6PXSV2 (rev. 1.0)

Model GA-6PXSV2 (rev. 1.0)Part no. GA-6PXSV2

57 specifications
  • Processor manufacturerIntel
  • Number of memory slots8
  • Supported storage drive interfacesSAS, SATA II, SATA III
  • Parallel processing technology support2-Way CrossFireX
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
8
Supported storage drive interfaces
SAS, SATA II, SATA III
Parallel processing technology support
2-Way CrossFireX
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Brand
GIGABYTE
Category
Motherboard
Model
GA-6PXSV2 (rev. 1.0)
Part number
GA-6PXSV2
Also known as
GIGABYTE GA-6PXSV2 (rev. 1.0) Intel® C604 LGA 2011 (Socket R) ATX

Specifications

57 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011 (Socket R)
Compatible processor seriesIntel® Xeon®

Memory

Number of memory slots8
Memory slots typeDIMM
Memory channelsQuad-channel
Memory voltage1.35,1.5 V
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1066,1333,1600,1866 MHz
Maximum RDIMM memory32 GB

Storage controllers

Supported storage drive interfacesSAS, SATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX
Graphics cardAST2300
Maximum resolution1920 x 1200 pixels

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors2
Number of SATA II connectors4
Number of SATA connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports3
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Microphone inYes
Serial ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® 82574L

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® C604
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x4 (Gen 2.x) slots1
PCI Express x8 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots1

Weight & dimensions

Width305 mm
Depth244 mm

Other features

Maximum UDIMM memory8 GB
