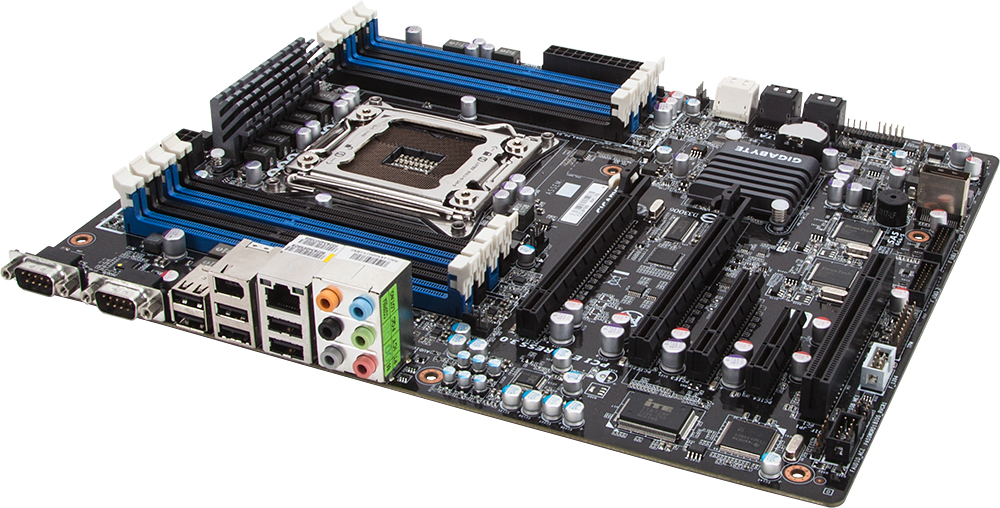

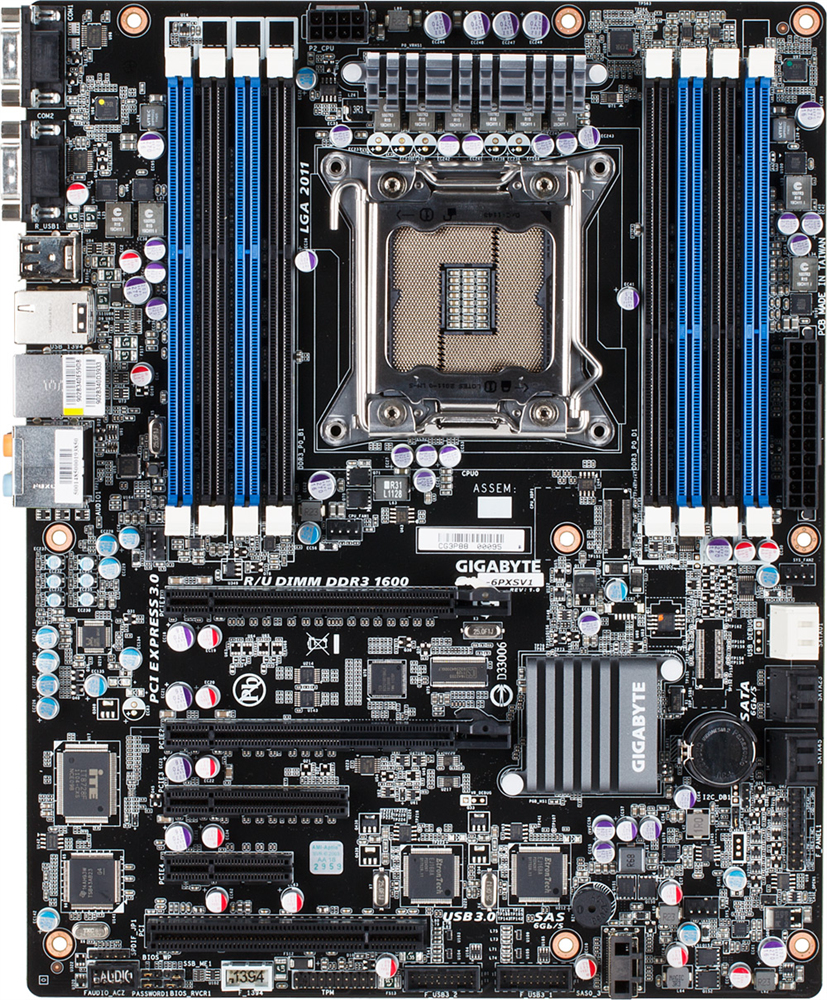

GIGABYTE GA-6PXSV1 (rev. 1.0)
Model GA-6PXSV1 (rev. 1.0)Part no. GA-6PXSV1EAN 4719331805173
37 specifications
- Processor manufacturerIntel
- ECC сompatibilityECC & Non-ECC
- Supported storage drive interfacesSATA II, SATA III
- USB 3.2 Gen 1 (3.1 Gen 1) connectors2
- USB 2.0 ports quantity6
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- ECC сompatibility
- ECC & Non-ECC
- Supported storage drive interfaces
- SATA II, SATA III
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 2.0 ports quantity
- 6
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-6PXSV1 (rev. 1.0)
- Part number
- GA-6PXSV1
- EAN / UPC
- 4719331805173
- Also known as
- GIGABYTE GA-6PXSV1 (rev. 1.0) Intel® C604 LGA 2011 (Socket R) ATX
Specifications
37 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011 (Socket R) |
| Intel Xeon series | E5-1600, E5-2600 |
Memory
| Specification | Value |
|---|---|
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1866 MHz |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Integrated SAS ports | 1 |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 1 |
| Microphone in | Yes |
| Serial ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® C604 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS button | Yes |
Processor special features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Supported UDIMM module capacity | 8GB |
| Supported RDIMM module capacity | 32GB |
| Number of DIMM slots | 8 |
