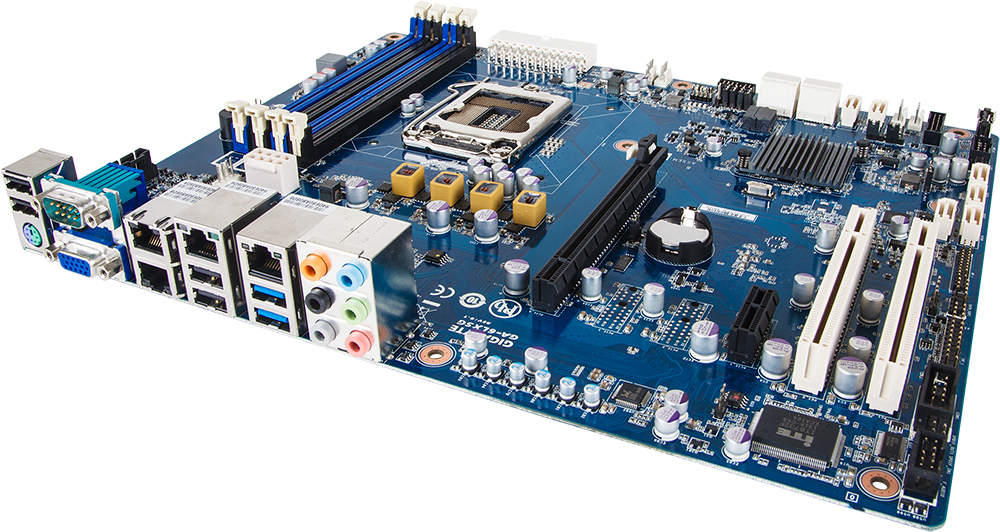

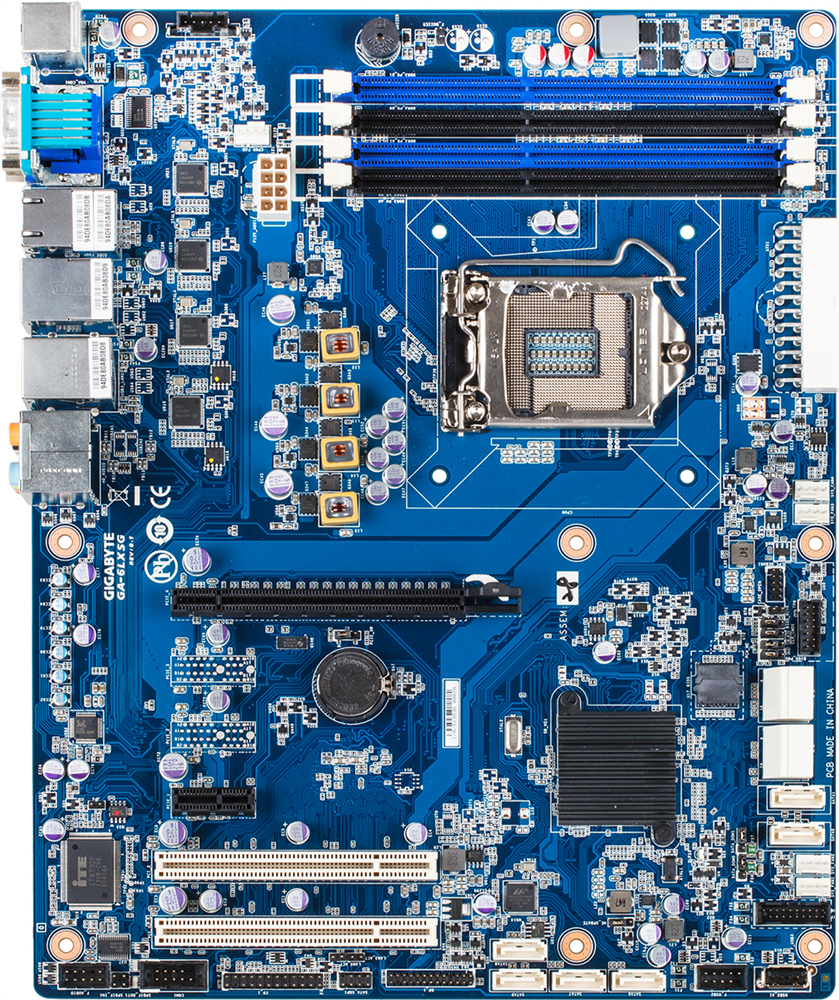

GIGABYTE GA-6LXSG motherboard LGA 1150 (Socket H3) ATX
Model GA-6LXSGEAN 4719331849238
41 specifications
- Processor manufacturerIntel
- ECC сompatibilityNon-ECC
- Supported storage drive interfacesSATA III
- USB 2.0 connectors1
- USB 2.0 ports quantity4
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- ECC сompatibility
- Non-ECC
- Supported storage drive interfaces
- SATA III
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 4
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-6LXSG
- Part number
- GA-6LXSG
- EAN / UPC
- 4719331849238
- Also known as
- GIGABYTE GA-6LXSG motherboard LGA 1150 (Socket H3) ATX
Specifications
41 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Xeon® |
| Intel Xeon series | E3-1200 |
Memory
| Specification | Value |
|---|---|
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1333,1600,1866 MHz |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 10 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |

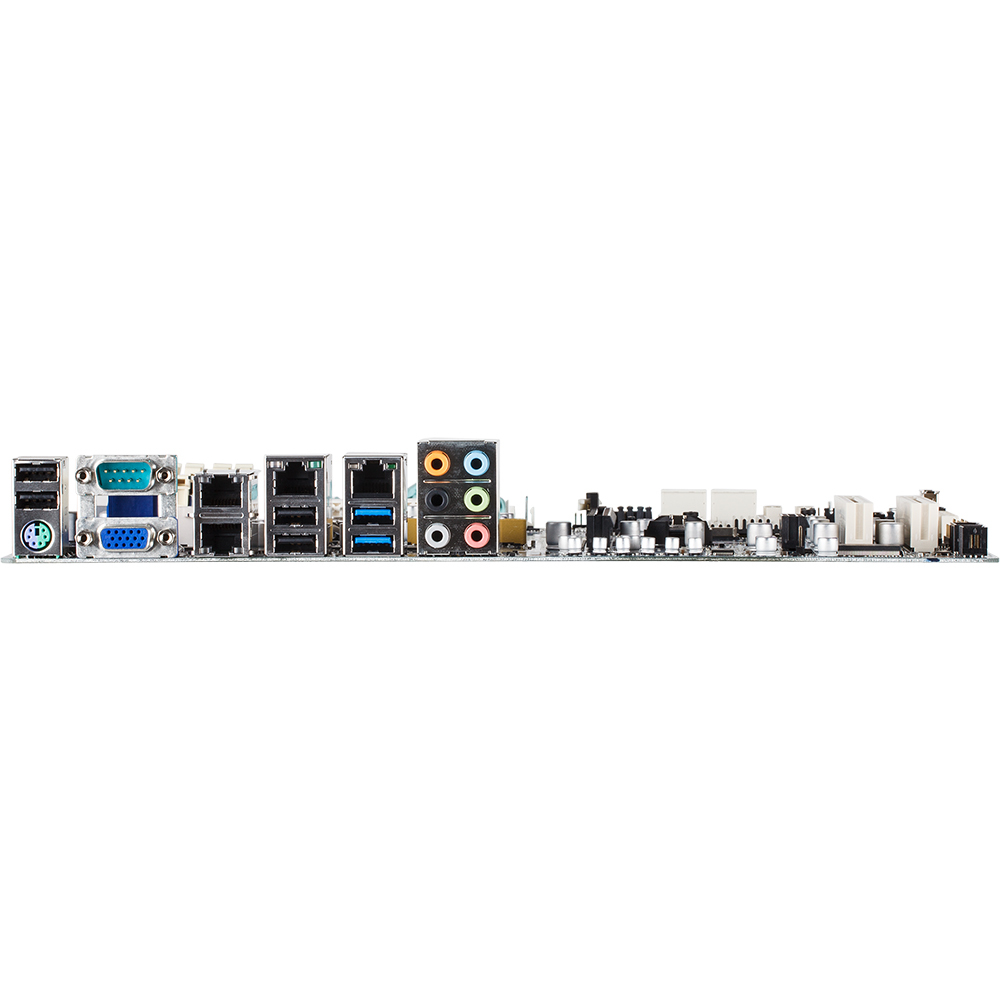

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel I210 |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| Supported UDIMM clock speeds | 1333,1600,1866 MHz |
| Maximum UDIMM memory | 32 GB |
| Number of DIMM slots | 4 |
| Packaging content | 1 x Driver CD 1 x I/O shield 2 x SATA II 3Gb/s cables (500mm) |
What people say
Reviews & ratings
GIGABYTE GA-6LXSG motherboard LGA 1150 (Socket H3) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-6LXSG motherboard LGA 1150 (Socket H3) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-6LXSG motherboard LGA 1150 (Socket H3) ATX

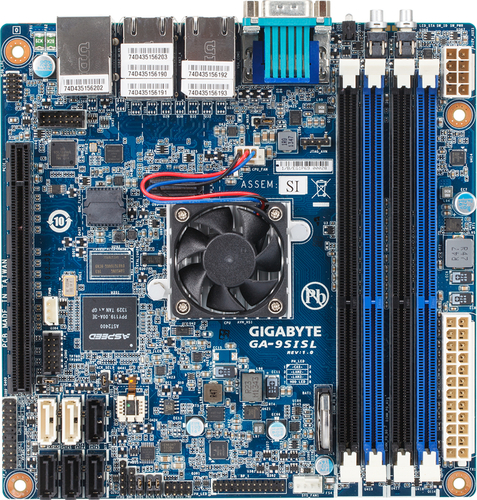

All motherboard comparisons- GIGABYTE GA-6LXSG motherboard LGA 1150 (Socket H3) ATX vsGIGABYTE GA-9SISL (rev. 1.2)Compare specs

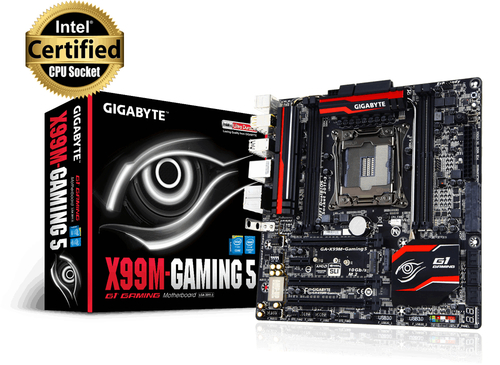

- GIGABYTE GA-6LXSG motherboard LGA 1150 (Socket H3) ATX vsGIGABYTE GA-X99M-Gaming 5 (rev. 1.0)Compare specs
