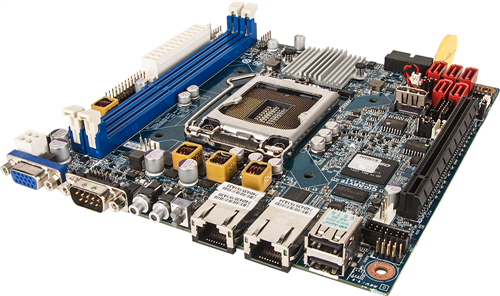

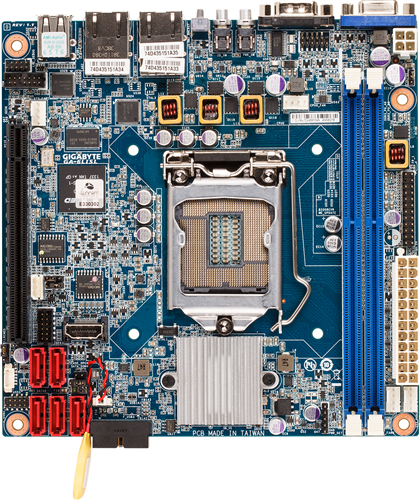

GIGABYTE GA-6LISL motherboard Intel® C226 LGA 1150 (Socket H3) Mini-ITX
Model GA-6LISLEAN 818313020772
37 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- On-board graphics card modelAspeed AST2300
- USB 2.0 connectors1
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- On-board graphics card model
- Aspeed AST2300
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-6LISL
- Part number
- GA-6LISL
- EAN / UPC
- 818313020772, 4719331802189
- Also known as
- GIGABYTE GA-6LISL motherboard Intel® C226 LGA 1150 (Socket H3) Mini-ITX
Specifications
37 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Intel Xeon series | E3-1200 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1333,1600 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2300 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| Number of SATA III connectors | 5 |
| ATX Power connector (24-pin) | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | Mini-ITX |
| Motherboard chipset | Intel® C226 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 0 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Processor special features
| Specification | Value |
|---|---|
| Intelligent Platform Management Interface (IPMI) support | Yes |
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| Number of DIMM slots | 2 |
| Number of processors supported | 1 |
What people say
Reviews & ratings
GIGABYTE GA-6LISL motherboard Intel® C226 LGA 1150 (Socket H3) Mini-ITX
No reviews yet
Be the first to tell others how GIGABYTE GA-6LISL motherboard Intel® C226 LGA 1150 (Socket H3) Mini-ITX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-6LISL motherboard Intel® C226 LGA 1150 (Socket H3) Mini-ITX
All motherboard comparisons- GIGABYTE GA-6LISL motherboard Intel® C226 LGA 1150 (Socket H3) Mini-ITX vsGIGABYTE GA-X99-Gaming 5Compare specs

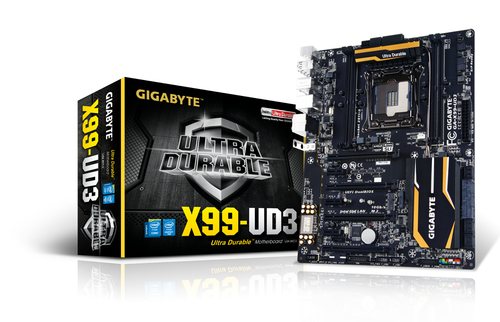

- GIGABYTE GA-6LISL motherboard Intel® C226 LGA 1150 (Socket H3) Mini-ITX vsGIGABYTE GA-X99-UD3 motherboard Intel® X99 LGA 2011-v3 ATXCompare specs
- GIGABYTE GA-6LISL motherboard Intel® C226 LGA 1150 (Socket H3) Mini-ITX vsGIGABYTE GA-B85M-DASH (rev. 1.1)Compare specs
- GIGABYTE GA-6LISL motherboard Intel® C226 LGA 1150 (Socket H3) Mini-ITX vsGIGABYTE GA-78LMT-S2PV motherboard AMDCompare specs
- GIGABYTE GA-6LISL motherboard Intel® C226 LGA 1150 (Socket H3) Mini-ITX vsMSI X99S GAMING 9 ACCompare specs
- GIGABYTE GA-6LISL motherboard Intel® C226 LGA 1150 (Socket H3) Mini-ITX vsMSI X99S XPOWER ACCompare specs
- GIGABYTE GA-6LISL motherboard Intel® C226 LGA 1150 (Socket H3) Mini-ITX vsASUS MAXIMUS VII IMPACTCompare specs

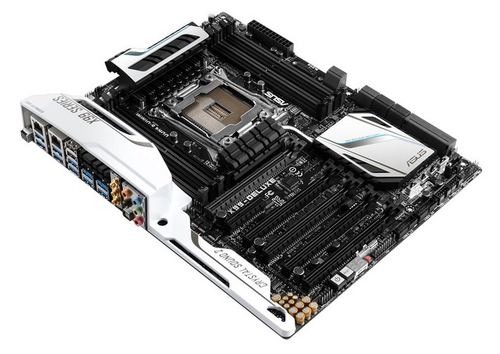

- GIGABYTE GA-6LISL motherboard Intel® C226 LGA 1150 (Socket H3) Mini-ITX vsASUS X99-DELUXE motherboard Intel® X99 LGA 2011-v3 ATXCompare specs
