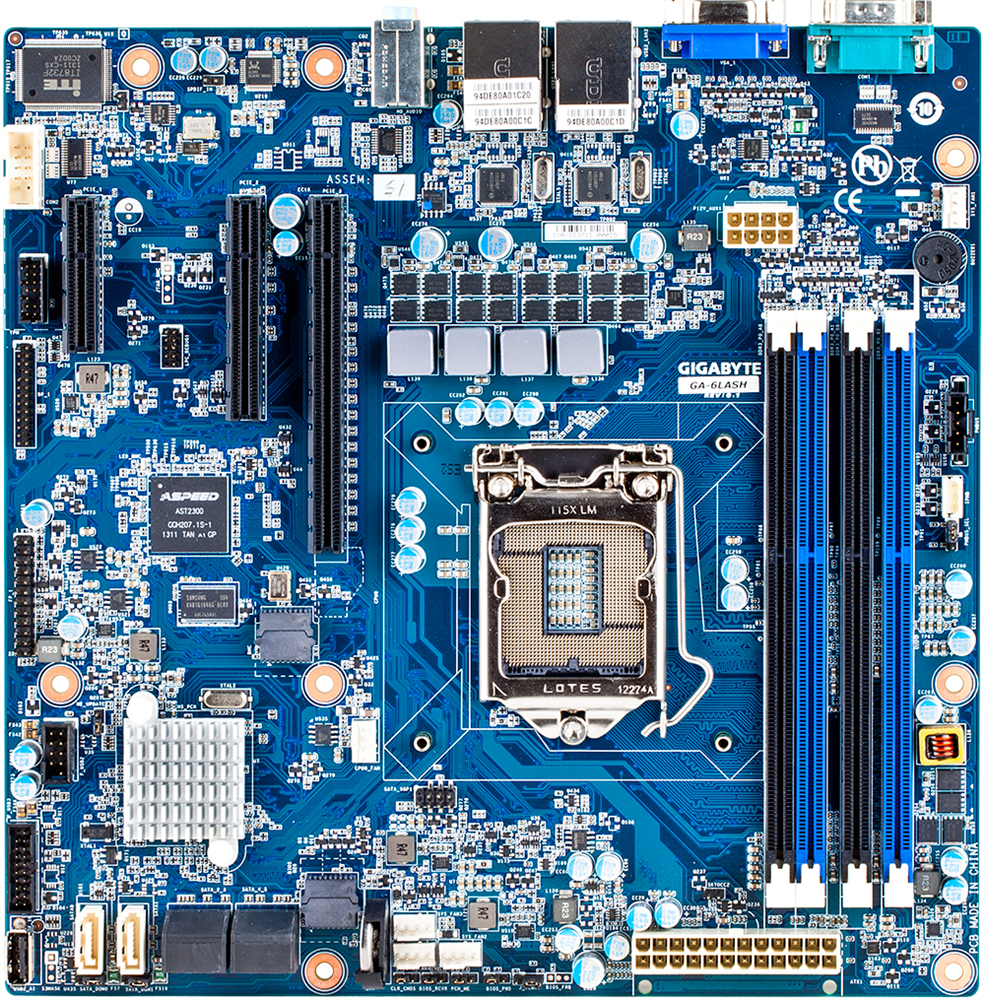

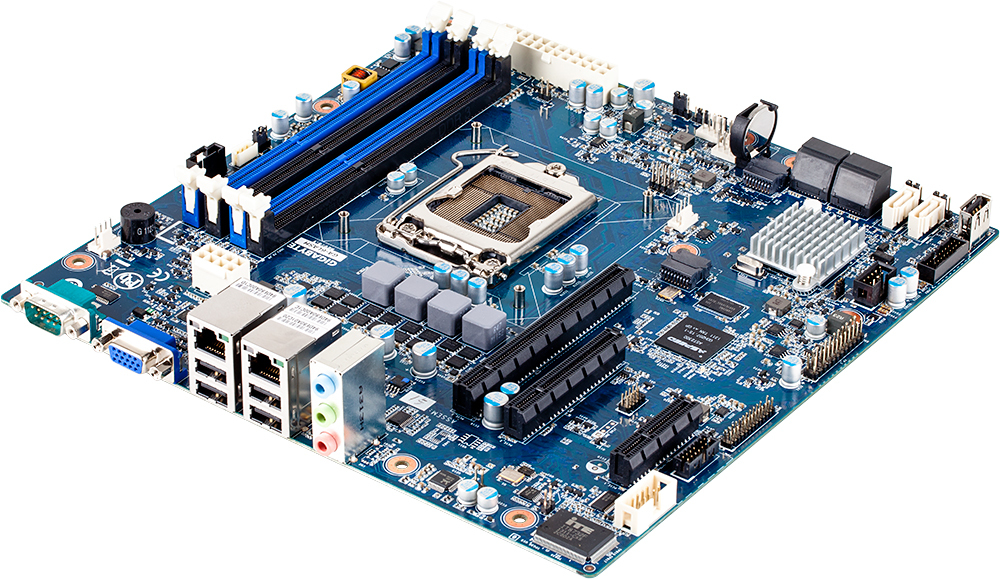

GIGABYTE GA-6LASH motherboard Intel® C222 LGA 1150 (Socket H3) micro ATX
Model GA-6LASHEAN 4719331838324
37 specifications
- Processor manufacturerIntel
- ECC сompatibilityECC
- Supported storage drive interfacesSATA II, SATA III
- On-board graphics card modelAspeed AST2300
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- ECC сompatibility
- ECC
- Supported storage drive interfaces
- SATA II, SATA III
- On-board graphics card model
- Aspeed AST2300
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-6LASH
- Part number
- GA-6LASH
- EAN / UPC
- 4719331838324
- Also known as
- GIGABYTE GA-6LASH motherboard Intel® C222 LGA 1150 (Socket H3) micro ATX
Specifications
37 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
Memory
| Specification | Value |
|---|---|
| ECC сompatibility | ECC |
| Supported memory clock speeds | 1333,1600,1866 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2300 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel® C222 |
| Audio output channels | 7.1 channels |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express x8 (Gen 2.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 0 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Number of DIMM slots | 4 |
