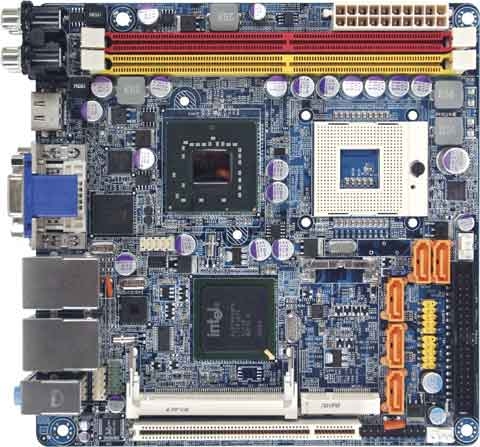

GIGABYTE GA-6KIEH-RH motherboard mini ITX
Model GA-6KIEH-RH
39 specifications
- Processor manufacturerIntel
- Number of memory slots2
- RAID levels0, 1, 5, 10
- Maximum graphics card memory256 MB
- USB 2.0 ports quantity4
- LAN controllerIntel® 82566DC
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- RAID levels
- 0, 1, 5, 10
- Maximum graphics card memory
- 256 MB
- USB 2.0 ports quantity
- 4
- LAN controller
- Intel® 82566DC
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-6KIEH-RH
- Part number
- GA-6KIEH-RH
- Also known as
- GIGABYTE GA-6KIEH-RH motherboard mini ITX
Specifications
39 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 256 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 5 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of COM connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Component video (YPbPr/YCbCr) out | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82566DC |
| Networking features | WOL, PXE, AFT, ALB, SLA, 802.3ad, SFT |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | mini ITX |
| Audio output channels | 6.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller interface type | ITE IT8718F |
| CF card connector | Yes |
| Graphics controller | Intel GMA X3100 |
