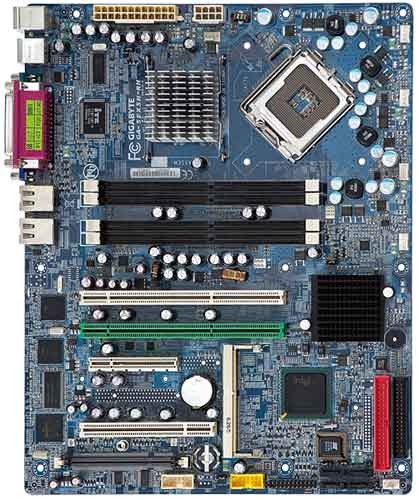

GIGABYTE GA-5EXSH-RH motherboard Intel® 3000 LGA 775 (Socket T) ATX
Model GA-5EXSH-RHEAN 4719331803049
34 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 5, 10
- Maximum graphics card memory16 MB
- USB 2.0 ports quantity3
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10
- Maximum graphics card memory
- 16 MB
- USB 2.0 ports quantity
- 3
- Motherboard form factor
- ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-5EXSH-RH
- Part number
- GA-5EXSH-RH
- EAN / UPC
- 4719331803049
- Also known as
- GIGABYTE GA-5EXSH-RH motherboard Intel® 3000 LGA 775 (Socket T) ATX
Specifications
34 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Pentium® D |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 16 MB |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| COM ports quantity | 2 |
| Parallel ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® 3000 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI slots | 1 |
| PCI-X slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304.8 mm |
| Depth | 243.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller interface type | ITE IT8718F-S |
| Graphics controller | XGI Volari Z7 |
| IPMI 2.0 slot | Yes |
| RAID controller type | Intel ICH7R |
What people say
Reviews & ratings
GIGABYTE GA-5EXSH-RH motherboard Intel® 3000 LGA 775 (Socket T) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-5EXSH-RH motherboard Intel® 3000 LGA 775 (Socket T) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-5EXSH-RH motherboard Intel® 3000 LGA 775 (Socket T) ATX
All motherboard comparisons- GIGABYTE GA-5EXSH-RH motherboard Intel® 3000 LGA 775 (Socket T) ATX vsGIGABYTE GA-P35C-DS3 motherboard LGA 775 (Socket T) ATXCompare specs

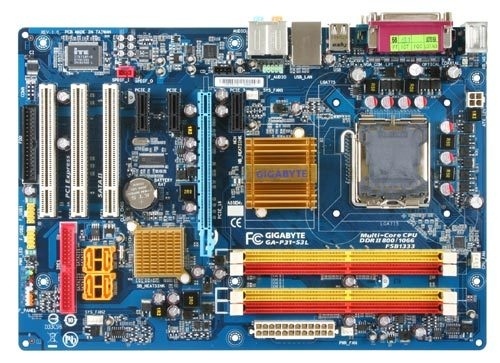

- GIGABYTE GA-5EXSH-RH motherboard Intel® 3000 LGA 775 (Socket T) ATX vsGIGABYTE GA-P31-S3L motherboard LGA 775 (Socket T) ATXCompare specs
