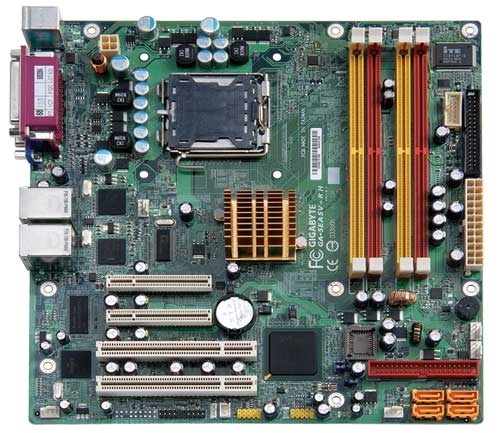

GIGABYTE GA-5EASV motherboard Intel® 3000 LGA 775 (Socket T) micro ATX
Model GA-5EASV
28 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 5, 10
- Maximum graphics card memory16 MB
- USB 2.0 ports quantity8
- LAN controllerIntel® 82573L
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10
- Maximum graphics card memory
- 16 MB
- USB 2.0 ports quantity
- 8
- LAN controller
- Intel® 82573L
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-5EASV
- Part number
- GA-5EASV
- Also known as
- GIGABYTE GA-5EASV motherboard Intel® 3000 LGA 775 (Socket T) micro ATX
Specifications
28 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Pentium® 4, Intel® Pentium® D |
| Processor system buses supported | 1066 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 16 MB |
| Graphics card | XGI Z7 |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA connectors | 4 |
| ATX Power connector (24-pin) | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 2 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82573L |
| Networking features | GbE |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel® 3000 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1xPCI-E x8, 1xPCI x4, 2xPCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Controller interface type | ATA-133 |
What people say
Reviews & ratings
GIGABYTE GA-5EASV motherboard Intel® 3000 LGA 775 (Socket T) micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-5EASV motherboard Intel® 3000 LGA 775 (Socket T) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-5EASV motherboard Intel® 3000 LGA 775 (Socket T) micro ATX
All motherboard comparisons- GIGABYTE GA-5EASV motherboard Intel® 3000 LGA 775 (Socket T) micro ATX vsGIGABYTE GA-8I945GZM-S2 motherboard Socket 945 micro ATXCompare specs
- GIGABYTE GA-5EASV motherboard Intel® 3000 LGA 775 (Socket T) micro ATX vsGIGABYTE GA-M59SLI-S5 motherboard Socket AM2 ATXCompare specs
- GIGABYTE GA-5EASV motherboard Intel® 3000 LGA 775 (Socket T) micro ATX vsGIGABYTE GA-9IVDTH motherboard Intel® E7320 Socket 604 (mPGA604) Extended ATXCompare specs
- GIGABYTE GA-5EASV motherboard Intel® 3000 LGA 775 (Socket T) micro ATX vsGIGABYTE GA-7A8DW motherboard Socket 940 Extended ATXCompare specs

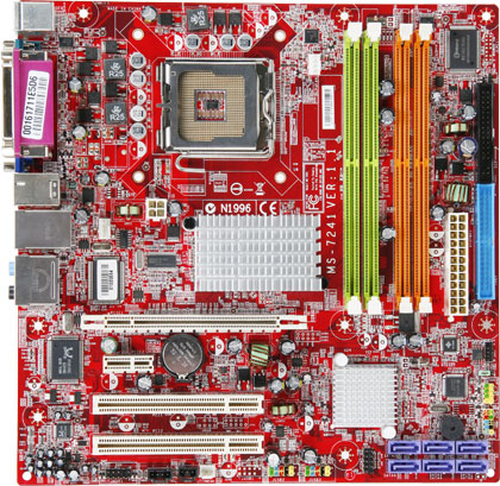

- GIGABYTE GA-5EASV motherboard Intel® 3000 LGA 775 (Socket T) micro ATX vsMSI G965M-FIR LGA 775 (Socket T) mini ATXCompare specs

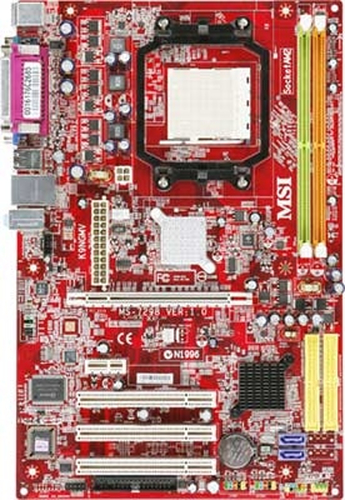

- GIGABYTE GA-5EASV motherboard Intel® 3000 LGA 775 (Socket T) micro ATX vsMSI K9NG Neo-VCompare specs
