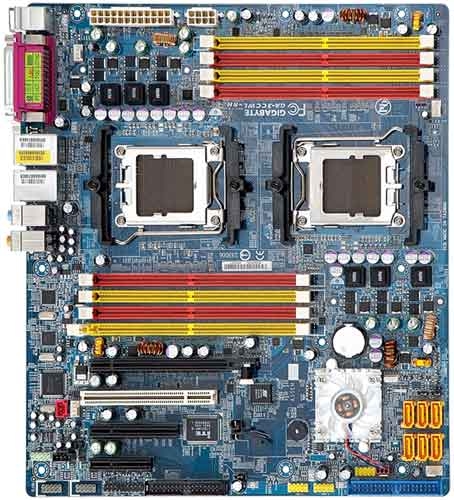

GIGABYTE GA-3CCWL-RH motherboard NVIDIA MCP55 Pro Socket F (1207) SSI CEB
Model GA-3CCWL-RH
29 specifications
- Processor manufacturerAMD
- ECC сompatibilityECC
- RAID levels0, 1, 5, 10
- Number of SATA connectors6
- USB 2.0 ports quantity10
- LAN controllerMarvell 88E1116
Overview
- Processor manufacturer
- AMD
- ECC сompatibility
- ECC
- RAID levels
- 0, 1, 5, 10
- Number of SATA connectors
- 6
- USB 2.0 ports quantity
- 10
- LAN controller
- Marvell 88E1116
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-3CCWL-RH
- Part number
- GA-3CCWL-RH
- Also known as
- GIGABYTE GA-3CCWL-RH motherboard NVIDIA MCP55 Pro Socket F (1207) SSI CEB
Specifications
29 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket F (1207) |
Memory
| Specification | Value |
|---|---|
| ECC сompatibility | ECC |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| Number of IEEE1394 connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 10 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 6 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| COM ports quantity | 2 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Marvell 88E1116 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | SSI CEB |
| Motherboard chipset | NVIDIA MCP55 Pro |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304.8 mm |
| Depth | 266.7 mm |
