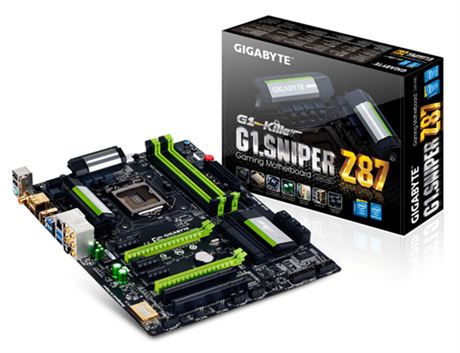

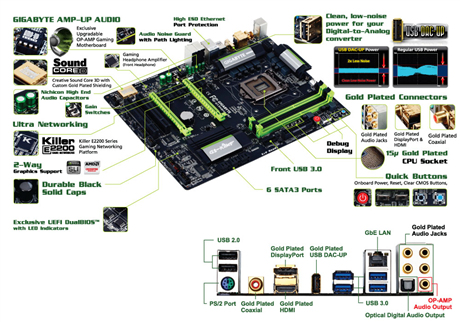

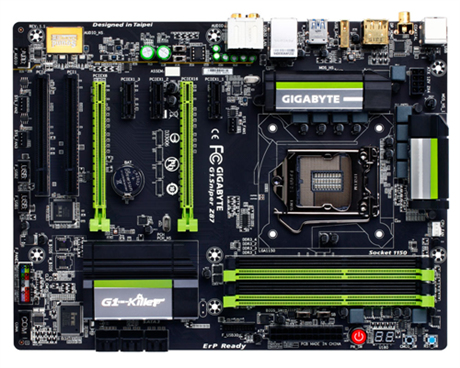

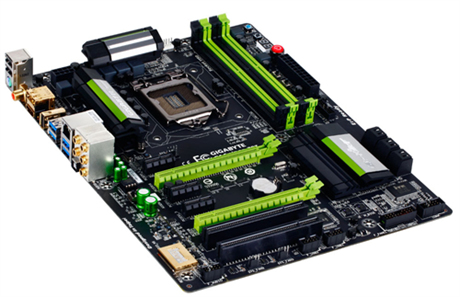

GIGABYTE G1.SNIPER Z87

GIGABYTE G1.SNIPER Z87

Model G1.SNIPER Z87EAN 818313018335

50 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • USB 2.0 connectors2
  • USB 2.0 ports quantity3
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
USB 2.0 ports quantity
3
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
G1.SNIPER Z87
Part number
G1.SNIPER Z87
EAN / UPC
818313018335, 4719331844196
Also known as
GIGABYTE G1.SNIPER Z87 motherboard Intel® Z87 LGA 1150 (Socket H3) ATX

Specifications

50 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Memory slots typeDIMM
Memory voltage1.5 V
Supported memory clock speeds1333,1600,1800,1866,2000,2133,2200,2400,2600,2666,2800,3000 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA III

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes

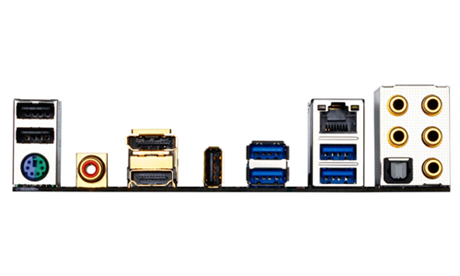

Rear panel I/O ports

USB 2.0 ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version1.4a
DVI-D ports quantity0
DisplayPorts quantity1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z87
Audio output channels5.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots3
PCI Express x1 (Gen 2.x) slots3
PCI Express x16 slots2
PCI Express x16 (Gen 3.x) slots2
PCI slots2

BIOS

BIOS typeEFI AMI
ACPI version2.0a
Clear CMOS jumperYes
Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth233 mm

Other features

BIOS switch buttonYes
